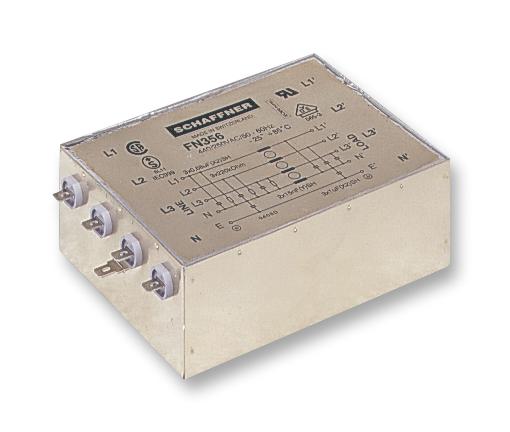

FN356-16-06 Filter, 16A, 3 Phase, Neutral Schaffner

SCHAFFNERUGS :FN356-16-06 Code de commande:1191322

Prix:
Prix ​​promotionnel€238,22

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (66 unité)

Documenten en downloads

description

SCHAFFNER - FN356-16-06 - Power Line Filter, Installation, General Purpose, 250 VAC, 16 A, Three Phase, 1 Stage

  • Current Rating: 16A
  • Voltage Rating: 250V
  • Filter Type: 3 Phase + Neutral Line
  • Filter Terminals: Quick Connect
  • Inductance Min: 1.2mH
  • Capacitance: 0.68µF
  • Leakage Current Max: 2.85mA
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: CSA, SEV
  • External Depth: 149mm
  • External Length / Height: 50mm
  • External Width: 104mm
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -25°C
  • RMS Current (Irms): 18.4A
  • Standard: IEC950
  • Supply Frequency Max: 400Hz
  • Supply Frequency Min: 0Hz
  • Voltage Rating VAC: 250V
  • Weight: 1.6kg
