NTJD4401NT1G MOSFET TRANSISTOR ONSEMI

ONSEMIUGS :NTJD4401NT1G Code de commande:1704020

Prix:
Prix ​​promotionnel€0,88

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (79 unité)

description

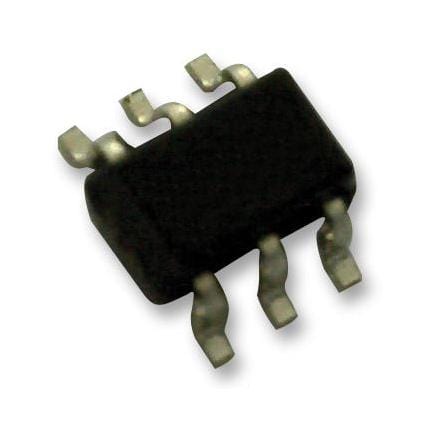

ONSEMI - NTJD4401NT1G - Dual MOSFET, N Channel, 20 V, 630 mA, 0.29 ohm, SOT-363, Surface Mount

  • Transistor Polarity: Dual N Channel
  • Continuous Drain Current Id: 630mA
  • Drain Source Voltage Vds: 20V
  • On Resistance Rds(on): 0.29ohm
  • Rds(on) Test Voltage Vgs: 4.5V
  • Threshold Voltage Vgs: 920mV
  • Power Dissipation Pd: 270mW
  • Transistor Case Style: SOT-363
  • No. of Pins: 6Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 1 - Unlimited
  • SVHC: No SVHC (27-Jun-2018)
  • Continuous Drain Current Id, N Channel: 630mA
  • Current Id Max: 630mA
  • Drain Source Voltage Vds, N Channel: 20V
  • Module Configuration: Dual
  • On Resistance Rds(on), N Channel: 0.29ohm
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • Voltage Vgs Max: 12V
