PSU30205 PSU, Module, +5V Lascar

LASCARUGS :PSU30205 Code de commande:1183261

Prix:
Prix ​​promotionnel€60,85

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Seul 1 produit disponible

Documents et téléchargements

description

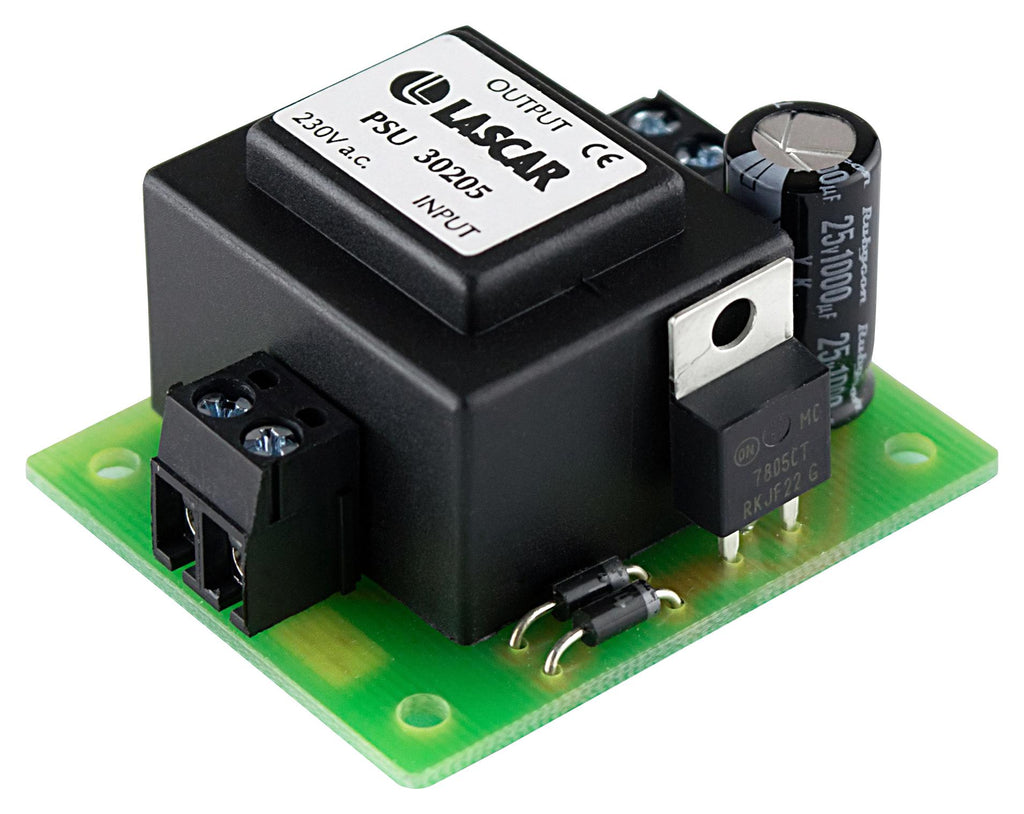

LASCAR - PSU30205 - Linear Power Supply, Compact, ITE, 1 Outputs, 5 V, 100 mA

  • No. of Outputs: 1Outputs
  • Output Power Max: -
  • Output Voltage - Output 1: 5V
  • Output Current - Output 1: 100mA
  • Output Voltage - Output 2: -
  • Output Current - Output 2: -
  • Input Voltage VAC: 220V AC to 250V AC
  • Product Range: -
  • Power Supply Output Type: Fixed
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • SVHC: No SVHC (15-Jan-2019)
  • DC Ripple Current: 0.5mA
  • External Depth: 50mm
  • External Length / Height: 29.6mm
  • External Width: 41mm
  • Height: 28mm
  • Input Voltage: 240V
  • Input Voltage AC Max: 250V
  • Input Voltage AC Min: 220V
  • Length: 50mm
  • Line Regulation: 1%
  • Load Regulation: 1%
  • Operating Temperature Max: 70°C
  • Output Voltage Max: 5V
  • Power Supply Type: Linear
  • Supply Voltage: 240V
  • Supply Voltage Typ: 240V AC
  • Width: 41mm
