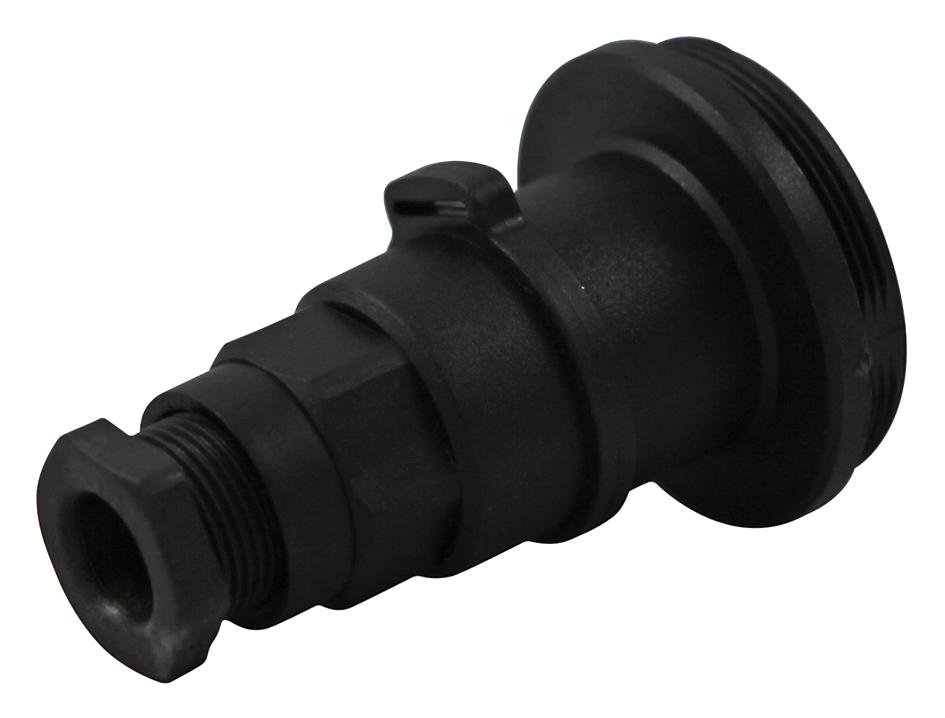

BULGIN LIMITED - PX0729/S - 469737 - Circular Connector, Buccaneer Standard Series, Cable Mount Receptacle, 9 Contacts, Crimp Socket
- Product Range: Buccaneer Standard Series
- Circular Connector Shell Style: Cable Mount Receptacle
- No. of Contacts: 9Contacts
- Circular Contact Type: Crimp Socket
- Coupling Style: Threaded
- Connector Body Material: Nylon (Polyamide), Glass Filled Body
- Connector Body Plating: -
- Contact Material: Copper Alloy
- Contact Plating: Tin
- SVHC: No SVHC (27-Jun-2018)
- Cable Diameter Max: 8.1mm
- Colour: Black
- Connector Mounting: Cable Mount
- Connector Type: Circular Industrial
- Contact Gender: Socket
- Contact Plating: Tin Plated Contacts
- Contact Resistance Max: 10mohm
- Contact Termination: Crimp
- Contact Termination Type: Crimp
- Current Rating: 5A
- External Diameter: 38.1mm
- External Length / Height: 64.4mm
- Flammability Rating: UL94V-0
- Gender: Receptacle
- IP / NEMA Rating: IP68
- Insulation Resistance: 100Mohm
- Moulding Material: Glass Filled Nylon
- Operating Temperature Max: 70°C
- Operating Temperature Min: -20°C
- Voltage Rating V DC: 150V
- Voltage Rating VAC: 150V
- Wire Size AWG Max: 25AWG
