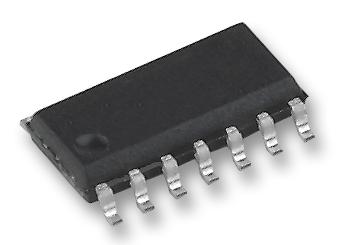

TEXAS INSTRUMENTS - SN74F08DR - Logic IC, AND Gate, Quad, 2 Inputs, 14 Pins, SOIC
- Logic Family / Base Number: 74F08
- Logic Type: AND
- Output Current: 20mA
- No. of Inputs: 2
- Supply Voltage Min: 4.5V
- Supply Voltage Max: 5.5V
- Logic Case Style: SOIC
- No. of Pins: 14Pins
- Logic IC Family: 74F
- Logic IC Base Number: 7408
- Operating Temperature Min: 0°C
- Operating Temperature Max: 70°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2019)
- Base Number: 74
- IC Temperature Range: Commercial
- Logic Function Number: 7408
- Logic IC Base Number: 74084
- Logic IC Function: Quadruple 2-Input AND Gate
- Operating Temperature Range: 0°C to +70°C
- Supply Voltage: 7V
- Supply Voltage Range: 4.5V to 5.5V
- Termination Type: Surface Mount Device
