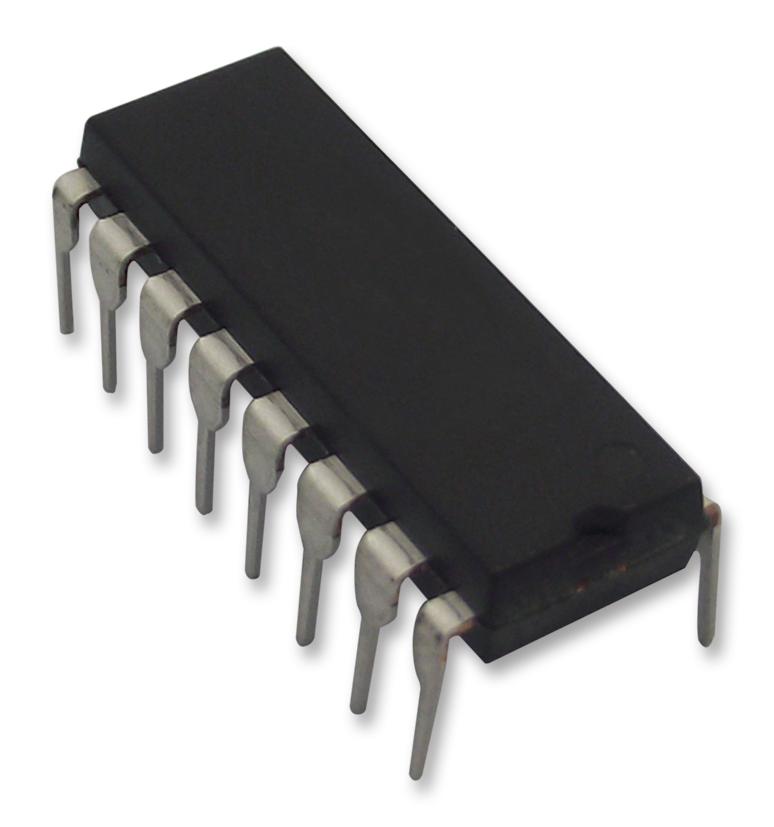

TEXAS INSTRUMENTS - SN74LS138N - Decoder / Demultiplexer, LS Family, 3:8, 4.75 V to 5.25 V, DIP-16
- Logic Family / Base Number: 74LS138
- Logic Type: 3-to-8 Line Decoder / Demultiplexer
- No. of Channels: 8Channels
- Line Configuration: 3
- Supply Voltage Min: 4.75V
- Supply Voltage Max: 5.25V
- Logic Case Style: DIP
- No. of Pins: 16Pins
- Logic IC Family: 74LS
- Logic IC Base Number: 74138
- Operating Temperature Min: 0°C
- Operating Temperature Max: 70°C
- Product Range: SN54LS138
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2019)
- Applications: Data Transmission Systems, Memory Decoders
- Base Number: 74
- Device Marking: 74LS138
- IC Generic Number: 74LS138
- IC Temperature Range: Commercial
- Input Current Max: 100µA
- Logic Function Number: 138
- Logic IC Base Number: 74138
- Logic IC Function: 3-to-8 Line Inverting Decoder/Demultiplexer
- No. of Outputs: 8Outputs
- Operating Temperature Range: 0°C to +70°C
- Ratio: 3
- Supply Voltage Range: 4.75V to 5.25V
- Termination Type: Through Hole
