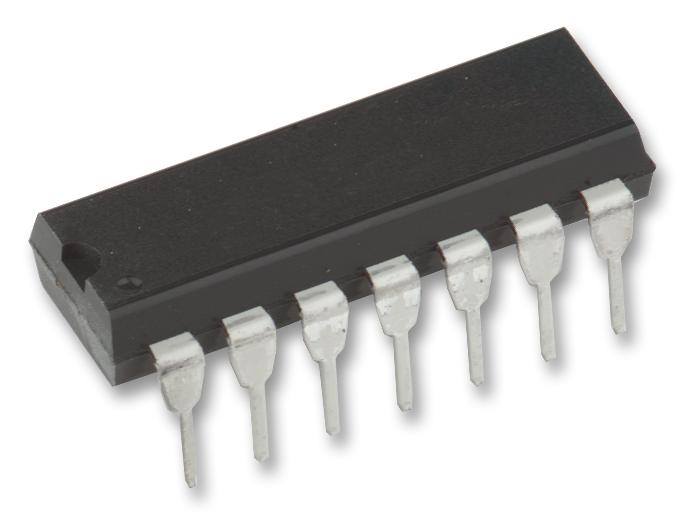

TEXAS INSTRUMENTS - SN74S04N - Logic IC, Inverter, 1 Inputs, 14 Pins, DIP
- Logic Family / Base Number: 74S04
- Logic Type: Inverter
- Output Current: 20mA
- No. of Inputs: 1
- Supply Voltage Min: 4.75V
- Supply Voltage Max: 5.25V
- Logic Case Style: DIP
- No. of Pins: 14Pins
- Logic IC Family: 74S
- Logic IC Base Number: 7404
- Operating Temperature Min: 0°C
- Operating Temperature Max: 70°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (15-Jan-2019)
- Base Number: 7404
- Logic IC Base Number: 7404
- Logic IC Function: Hex Inverter
- Operating Temperature Range: 0°C to +70°C
- Supply Voltage Range: 4.75V to 5.25V
- Termination Type: Through Hole
