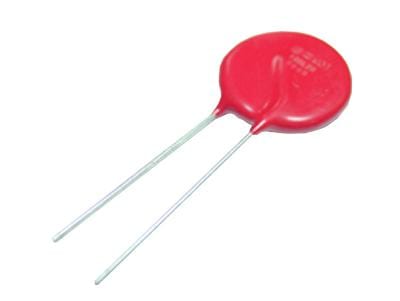

LITTELFUSE - V14E250P - TVS Varistor, MOV, 250 V, 320 V, UltraMOV, 650 V, Disc 14mm, Metal Oxide Varistor (MOV)
- Voltage Rating VAC: 250V
- Voltage Rating V DC: 320V
- Product Range: UltraMOV Series
- Clamping Voltage Vc Max: 650V
- Varistor Case Style: Disc 14mm
- Varistor Type: Metal Oxide Varistor (MOV)
- Peak Surge Current @ 8/20µs: 6kA
- Operating Temperature Min: -55°C
- Operating Temperature Max: 85°C
- Peak Energy (10/1000uS): 100J
- Automotive Qualification Standard: -
- Clamping Voltage: 650V
- Operating Temperature Range: -55°C to +85°C
- Suppressor Type: High Surge Current
- Surge Current: 4.5kA
- Varistor Voltage @ 1mA: 390V
- Varistor Voltage @ 1mA Max: 429V
- Varistor Voltage Tolerance +: 10%
- Varistor Voltage Tolerance -: 10%
