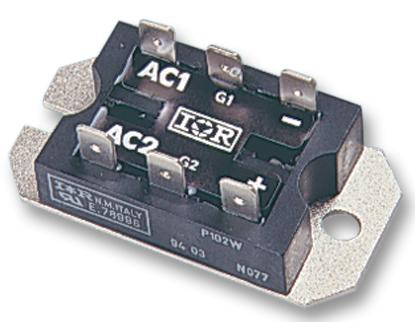

VISHAY - VS-P135 - Thyristor Bridge Rectifier Module, Single Phase, 25 A, 1200 V
- SCR Module Type: Bridge Rectifier, Single Phase - SCR
- Peak Repetitive Off-State Voltage, Vdrm: 1.2kV
- Gate Trigger Current Max, Igt: 60mA
- Current It av: 25A
- On State RMS Current IT(rms): -
- Peak Non Rep Surge Current Itsm 50Hz: 357A
- Holding Current Max Ih: 130mA
- Gate Trigger Voltage Max Vgt: 2V
- Operating Temperature Max: 125°C
- Product Range: -
- Case Temperature Tc: 85°C
- Current Itsm: 300A
- External Depth: 32mm
- External Length / Height: 14mm
- External Width: 64mm
- Fixing Centres: 49.5mm
- Isolation Voltage: 2500V
- No. of Pins: 8Pins
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +125°C
- Output Current: 25A
- Repetitive Reverse Voltage Vrrm Max: 1200V
- Termination Type: Quick Connect
- Thyristor Case: Module
- Thyristor Case Style: Module
- Thyristor Type: Thyristor
