WT150-P132 PHOTOSWITCH, DIFFUSE, PNP SICK

SICKUGS :WT150-P132 Code de commande:7229392

Prix:
Prix ​​promotionnel€216,45

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Rupture de stock

Documents et téléchargements

description

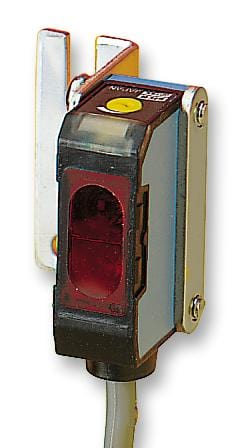

SICK - WT150-P132 - Photoelectric Sensor, W150 Series, Diffuse, 250 mm, PNP, 10 V to 30 V

  • Sensing Range Max: 250mm
  • Sensing Method: Diffuse
  • Sensor Output: PNP
  • Product Range: W150 Series
  • Connection Method: Cable
  • Supply Voltage DC Min: 10V
  • Supply Voltage DC Max: 30V
  • SVHC: No SVHC (15-Jan-2018)
  • Approval Bodies: UL
  • External Depth: 17mm
  • External Length / Height: 28mm
  • External Width: 10mm
  • Frequency Response Max: 1kHz
  • IP / NEMA Rating: IP67
  • Lead Length: 2m
  • Operating Frequency: 1000Hz
  • Operating Temperature Max: 55°C
  • Operating Temperature Min: -25°C
  • Output Current Max: 100mA
  • Sensing Distance Max: 200mm
  • Sensing Range: 10mm to 250mm
  • Sensor Input: Optical
  • Supply Voltage Range DC: 10V to 30V
