0012642 Cable, Ctrl, In/Sf, 4CORE, 0.75mm, 50m Lapp Kabel

LAPP KABELSKU:0012642 Bestelcode:1503982

Prijs:
Actie prijs€135,43

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (9 units)

Documenten en downloads

Omschrijving

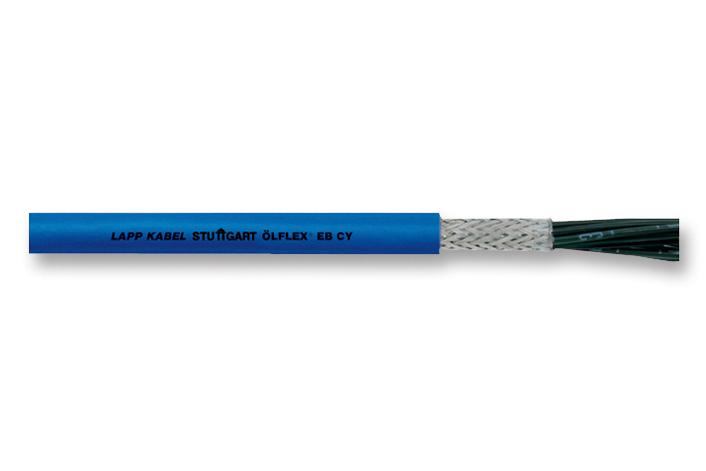

LAPP KABEL - 0012642 - Multicore Cable, Control, Screened, 4 Core, 19 AWG, 0.75 mm², 164 ft, 50 m

  • Cable Shielding: Screened
  • No. of Cores: 4Core
  • Wire Gauge: 19AWG
  • Conductor Area CSA: 0.75mm²
  • Reel Length (Imperial): 164ft
  • Reel Length (Metric): 50m
  • Jacket Colour: Blue
  • No. of Max Strands x Strand Size: 4 x 0.75mm²
  • Conductor Material: Copper
  • Jacket Material: PVC
  • External Diameter: 7mm
  • Voltage Rating: 50VAC
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Bend Flexing Radius Min: 20
  • Cable Type: CY
  • Conductor Make-up: 4 / 0.75mm²
  • Core-Earth / Core-Core Voltage Rating: &lt
  • Flexing Temperature Max: 70°C
  • Flexing Temperature Min: -5°C
  • Installed Bend Radius Min: 6
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -40°C
  • Outer Diameter: 7mm
  • Secondary Insulation Colour: Blue
  • Secondary Insulation Material: PVC
  • Test Voltage: 3000V
