1-1437719-5 Circular Connector, Plug, 3 Way, Cable Te Connectivity

TE CONNECTIVITYSKU:1-1437719-5 Bestelcode:130722

Prijs:
Actie prijs€51,99

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (70 units)

Documenten en downloads

Omschrijving

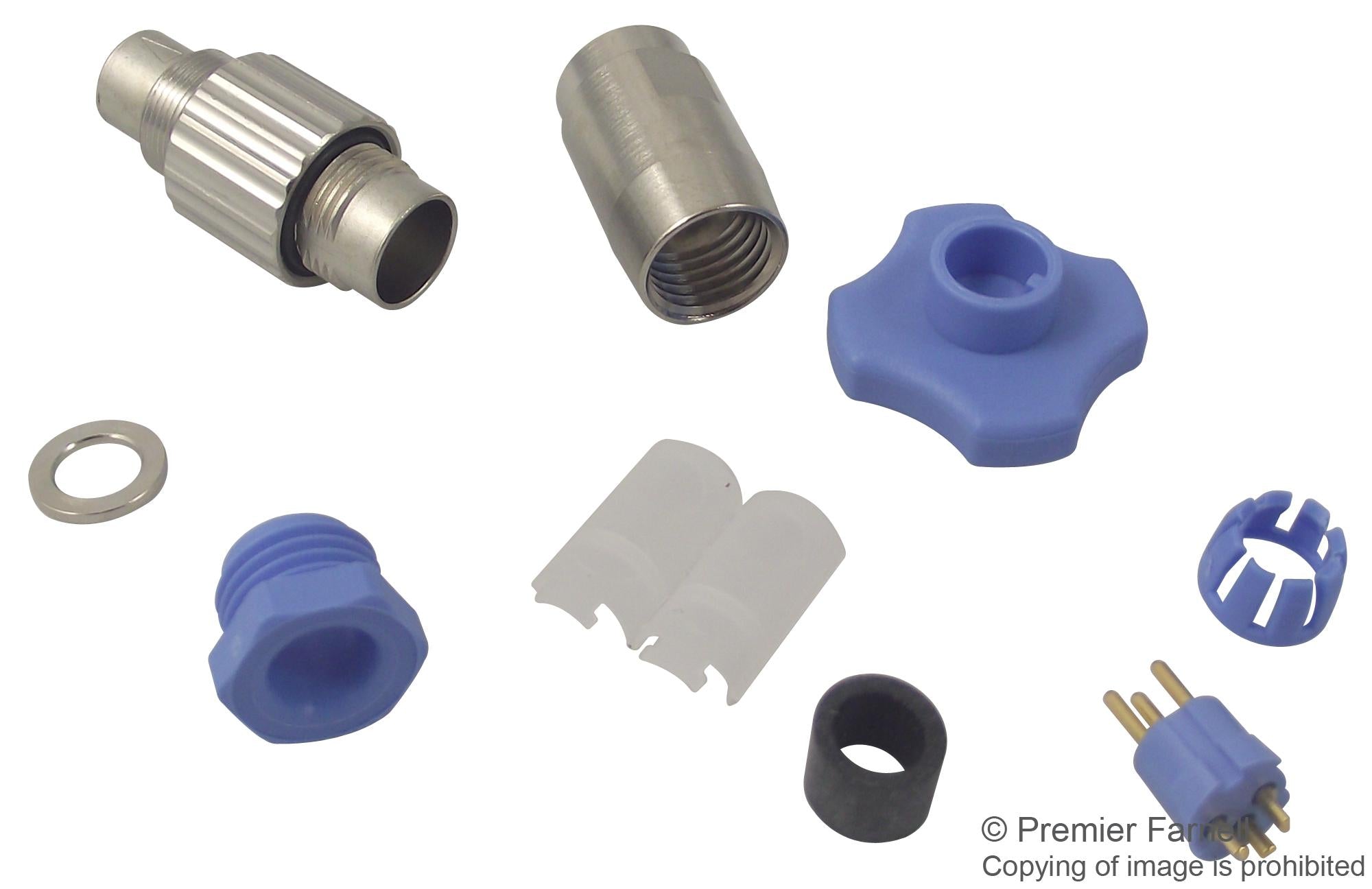

TE CONNECTIVITY - 1-1437719-5 - Circular Connector, T01 Series, Cable Mount Plug, 3 Contacts, Solder Pin, Brass Body

  • Product Range: TRIAD 01 Series
  • Circular Connector Shell Style: Cable Mount Plug
  • No. of Contacts: 3Contacts
  • Circular Contact Type: Solder Pin
  • Coupling Style: -
  • Connector Body Material: Brass Body
  • Connector Body Plating: -
  • Contact Material: -
  • Contact Plating: Gold
  • SVHC: No SVHC (15-Jan-2019)
  • Connector Mounting: Cable Mount
  • Connector Type: Circular Industrial
  • Contact Gender: Pin
  • Contact Plating: Gold Plated Contacts
  • Contact Resistance: 5mohm
  • Contact Termination: Solder
  • Contact Termination Type: Solder
  • Current Rating: 3A
  • Flammability Rating: UL94V-2
  • Gender: Plug
  • IP / NEMA Rating: IP65
  • No. of Mating Cycles: 500
  • Operating Temperature Max: 80°C
  • Operating Temperature Min: -40°C
  • Panel Thickness: 4mm
  • Test Voltage: 500V
  • Wire Area Size Max: 0.25mm²
  • Wire Area Size Min: 0.14mm²
  • Working Voltage: 60V
