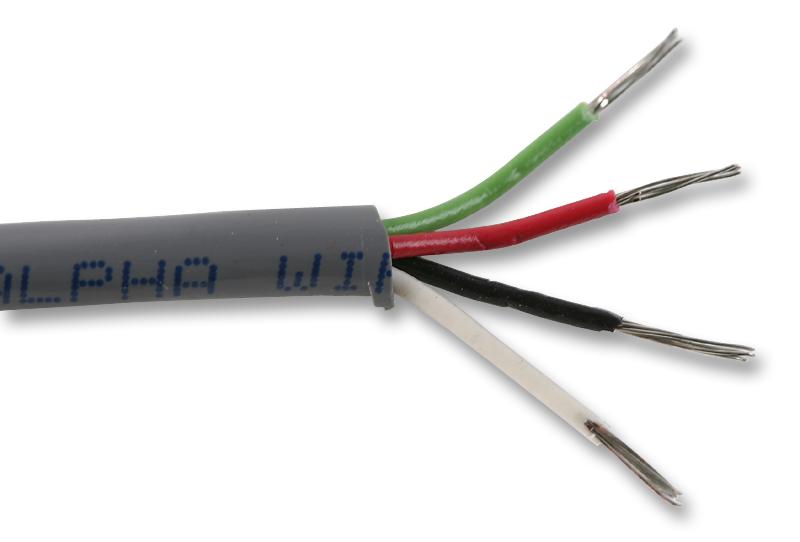

BELDEN - 1804A J5C100 - Multicore Cable, Star Quad, Screened, 4 Core, 28 AWG, 0.08 mm², 98.43 ft, 30.48 m
- Cable Shielding: Screened
- No. of Cores: 4Core
- Wire Gauge: 28AWG
- Conductor Area CSA: 0.08mm²
- Reel Length (Imperial): 98.43ft
- Reel Length (Metric): 30.48m
- Jacket Colour: Black
- No. of Max Strands x Strand Size: 19 x 0.079mm
- Conductor Material: Silver Plated Copper
- Jacket Material: PVC
- External Diameter: 2.921mm
- Voltage Rating: 100V
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Belden Type Number: 1804A
- Cable Type: Braided Shield
- Capacitance: 131pF/m
- Conductor Make-up: 19 / 40AWG
- Conductor Plating: Silver
- Outer Diameter: 2.92mm
- Screen Type Primary: Tinned Copper Braid
- Secondary Insulation Colour: Black
- Secondary Insulation Material: PVC
- Secondary Insulation Thickness: 0.356mm
- Wire Size: 28AWG
