2-1658527-2 Socket, IDC, 14WAY Amp - Te Connectivity

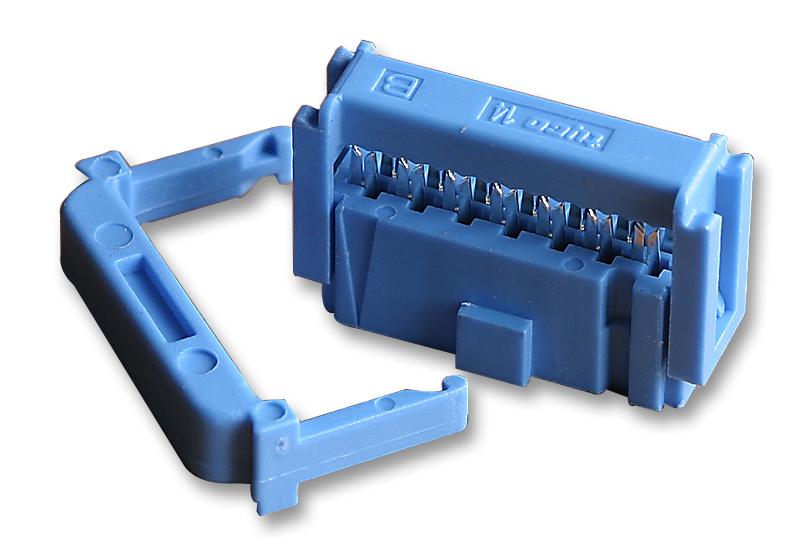

AMP - TE CONNECTIVITY - 2-1658527-2 - IDC Connector, IDC Receptacle, Female, 2.54 mm, 2 Row, 14 Contacts, Cable Mount

• Pitch Spacing: 2.54mm
• No. of Contacts: 14Contacts
• Gender: Receptacle
• Product Range: 622 Series
• Contact Termination Type: IDC / IDT
• No. of Rows: 2Rows
• Contact Plating: Gold Plated Contacts
• Contact Material: Beryllium Copper
• SVHC: No SVHC (27-Jun-2018)
• Contact Current Rating: 1A
• Flammability Rating: UL94V-0
• IDC Cable Pitch: 0.05"
• Insulation Resistance: 1Gohm
• Material: Glass Feinforced Thermoplastic
• No. of Mating Cycles: 200
• Operating Temperature Max: 125°C
• Operating Temperature Min: -55°C
• Polarisation Type: Bump/Clip
• Row Pitch: 2.54mm
• Withstand Voltage: 500V
