23ESB103MMF50NF Potentiometer, Log 10K CITEC - Te Connectivity

CITEC - TE CONNECTIVITYSKU:23ESB103MMF50NF Bestelcode:350175

Prijs:
Actie prijs€7,77

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (174 units)

Documenten en downloads

Omschrijving

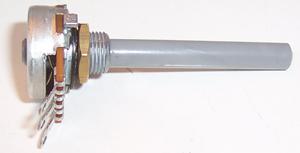

CITEC - TE CONNECTIVITY - 23ESB103MMF50NF - Rotary Potentiometer, Spindle Operated, 10 kohm, 1 Turns, Logarithmic, 200 mW, ± 20%, 23ESB

  • Track Resistance: 10kohm
  • No. of Turns: 1Turns
  • Track Taper: Logarithmic
  • Power Rating: 200mW
  • Resistance Tolerance: ± 20%
  • Product Range: 23ESB Series
  • Potentiometer Mounting: Panel
  • Shaft Diameter: 6.35mm
  • No. of Gangs: 1
  • Adjustment Type: Screwdriver Slot
  • Shaft Length: 50mm
  • SVHC: No SVHC (15-Jan-2018)
  • Body Diameter: 20.4mm
  • External Length / Height: 10.7mm
  • Full Power Rating Temperature: 40°C
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -10°C
  • Operating Temperature Range: -10°C to +70°C
  • Panel Cutout Diameter: 9.6mm
  • Proof Voltage: 1000V
  • Resistance: 10kohm
  • Resistor Element Material: Metal Foil
  • Rotation Electrical Angle: 267°
  • Rotation Mechanical Angle: 300°
  • Terminal Resistance: 5ohm
  • Termination Type: Solder
  • Thread Size: 7.4 M9.5
  • Tolerance +: 20%
  • Tolerance -: 20%
  • Voltage Rating: 500V
  • Voltage Rating V DC: 500V
  • Voltage Rating VAC: 500V
