Omschrijving

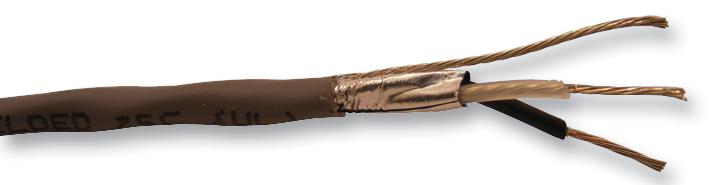

ALPHA WIRE - 2422C SL005 - Multicore Cable, Control, Screened, 2 Core, 18 AWG, 0.816 mm², 100 ft, 30.5 m
- Cable Shielding: Screened
- No. of Cores: 2Core
- Wire Gauge: 18AWG
- Conductor Area CSA: 0.816mm²
- Reel Length (Imperial): 100ft
- Reel Length (Metric): 30.5m
- Jacket Colour: Grey
- No. of Max Strands x Strand Size: 16 x 30AWG
- Conductor Material: Tinned Copper
- Jacket Material: PVC
- External Diameter: 5.3mm
- Voltage Rating: 300V
- Product Range: -
- SVHC: 1,6,7,8,9,14,15,16,17,17,18,18-Dodecachloropentacyclo[12.2.1.16,9.02,13.05,10]octadeca-7,15-diene ("Dechlorane Plus"TM) (15-Jan-2019)
- Cable Type: Foil Shield
- Conductor Make-up: 16 / 30AWG
- Operating Temperature Max: 75°C
- Operating Temperature Min: -20°C
- Outer Diameter: 5.3mm
- Secondary Insulation Colour: Grey
- Secondary Insulation Material: PVC
- Secondary Insulation Thickness: 0.5mm
- Test Voltage: 300V
- Wire Size: 18AWG
