Omschrijving

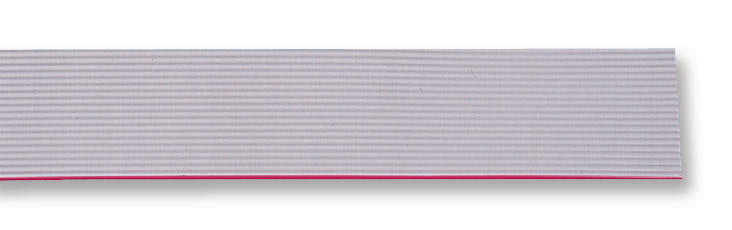

3M - 3365-34 - Ribbon Cable, Round Conductor Flat, Unscreened, 34 Core, 28 AWG, 0.072 mm², 100 ft, 30.5 m
- Cable Shielding: Unscreened
- No. of Cores: 34Core
- Wire Gauge: 28AWG
- Conductor Area CSA: 0.072mm²
- Reel Length (Imperial): 100ft
- Reel Length (Metric): 30.5m
- Jacket Colour: Grey
- Cable Width: 43.18mm
- No. of Max Strands x Strand Size: 7 x 36AWG
- Pitch Spacing: 1.27mm
- Voltage Rating: 300V
- Conductor Material: Tinned Copper
- Jacket Material: PVC
- Ribbon Cable Type: Flat Ribbon Cable
- Product Range: 3365 Series
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: UL
- Approval Category: Style 2651
- Cable Type: Flat (Ribbon)
- Cable UL Style Number: UL2651
- Capacitance: 42pF/m
- Colour: Grey
- Conductor Make-up: 7/36AWG
- Flammability Rating: VW-1
- Impedance: 108ohm
- Inductance: 0.49µH/m
- Insulation Resistance: 10000Mohm
- Operating Temperature Max: 105°C
