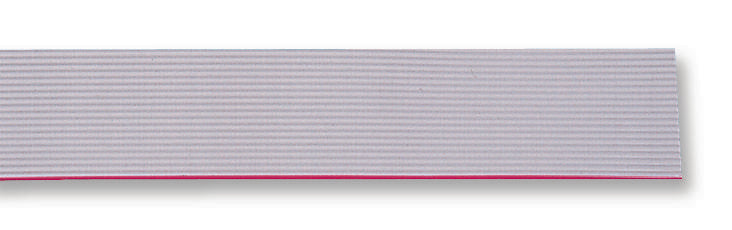

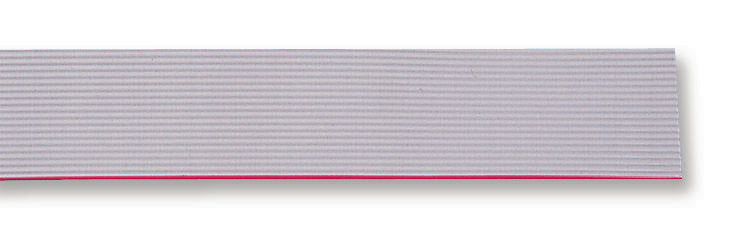

3365-64 Ribbon Cable, 64WAY, 30.5m 3M

3MSKU:3365-64 Bestelcode:4140588

Prijs:
Actie prijs€318,32

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (5 units)

Documenten en downloads

Omschrijving

3M - 3365-64 - Ribbon Cable, Round Conductor Flat, Unscreened, 64 Core, 28 AWG, 0.072 mm², 100 ft, 30.5 m

  • Cable Shielding: Unscreened
  • No. of Cores: 64Core
  • Wire Gauge: 28AWG
  • Conductor Area CSA: 0.072mm²
  • Reel Length (Imperial): 100ft
  • Reel Length (Metric): 30.5m
  • Jacket Colour: Grey
  • Cable Width: 81.28mm
  • No. of Max Strands x Strand Size: 7 x 36AWG
  • Pitch Spacing: 1.27mm
  • Voltage Rating: 300V
  • Conductor Material: Tinned Copper
  • Jacket Material: PVC
  • Ribbon Cable Type: Flat Ribbon Cable
  • Product Range: 3365 Series
  • SVHC: No SVHC (15-Jan-2018)
  • Approval Category: Style 2651
  • Cable Type: Flat (Ribbon)
  • Cable UL Style Number: UL2651
  • Capacitance: 42pF/m
  • Colour: Grey
  • Conductor Make-up: 7/36AWG
  • Flammability Rating: VW-1
  • Impedance: 108ohm
  • Inductance: 0.49µH/m
  • Insulation Resistance: 10000Mohm
  • Operating Temperature Max: 105°C
