3517-40 Ribbon Cable, 40WAY, Per M 3M

3MSKU:3517-40 Bestelcode:8608636

Prijs:
Actie prijs€46,09

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (21 units)

Documenten en downloads

Omschrijving

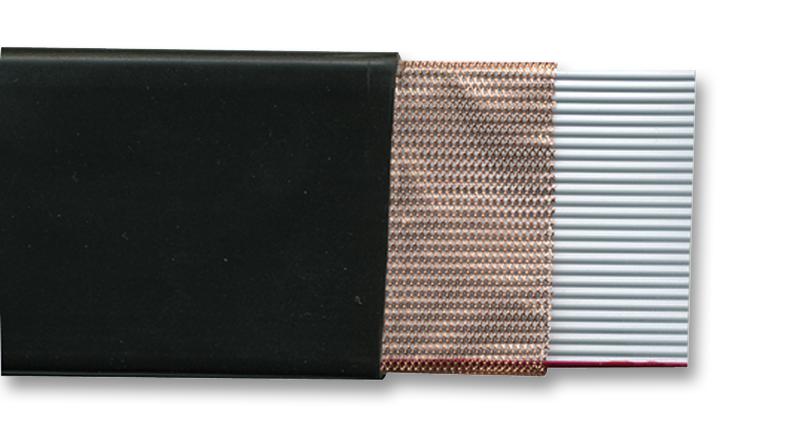

3M - 3517-40 - Ribbon Cable, Jacketed Flat, Screened, 40 Core, 28 AWG

  • Cable Shielding: Screened
  • No. of Cores: 40Core
  • Wire Gauge: 28AWG
  • Conductor Area CSA: -
  • Reel Length (Imperial): -
  • Reel Length (Metric): -
  • Jacket Colour: Black
  • Cable Width: 54.1mm
  • No. of Max Strands x Strand Size: 7 x 36AWG
  • Pitch Spacing: 1.27mm
  • Voltage Rating: 50V
  • Conductor Material: Tinned Copper
  • Jacket Material: PVC
  • Ribbon Cable Type: Jacketed Flat Ribbon Cable
  • Product Range: 3517 Series
  • Approval Bodies: UL
  • Approval Category: Style 20879
  • Cable Type: Shielded Flat (Ribbon)
  • Capacitance: 70.5pF/m
  • Colour: Grey
  • Conductor Make-up: 7/36AWG
  • Current Rating: 1A
  • Flammability Rating: CL2
  • Impedance: 119ohm
  • Inductance: 0.62µH/m
  • Operating Temperature Max: 80°C
  • Operating Temperature Min: -20°C
