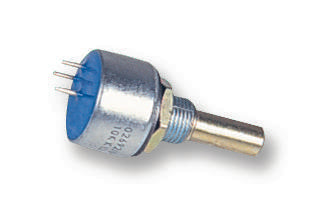

CITEC - TE CONNECTIVITY - 404802692039 - Rotary Potentiometer, Cermet, 22 kohm, 1 Turns, Linear, 2 W, ± 10%, M
- Track Resistance: 22kohm
- No. of Turns: 1Turns
- Track Taper: Linear
- Power Rating: 2W
- Resistance Tolerance: ± 10%
- Product Range: M Series
- Potentiometer Mounting: Panel
- Shaft Diameter: 6.35mm
- No. of Gangs: 1
- Adjustment Type: Rotary
- Shaft Length: 25mm
- Body Diameter: 19mm
- External Length / Height: 12.7mm
- Full Power Rating Temperature: 70°C
- Insulation Resistance: 1000Mohm
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Resistance: 22kohm
- Resistor Element Material: Cermet
- Resistor Mounting: Panel
- Rotation Mechanical Angle: 270°
- Temperature Coefficient: 0.75%
- Terminal Resistance: 3ohm
- Thread Size: 3/8" 32 UNEF
- Tolerance +: 10%
- Tolerance -: 10%
- Voltage Rating: 315V
- Voltage Rating V DC: 315V
