Omschrijving

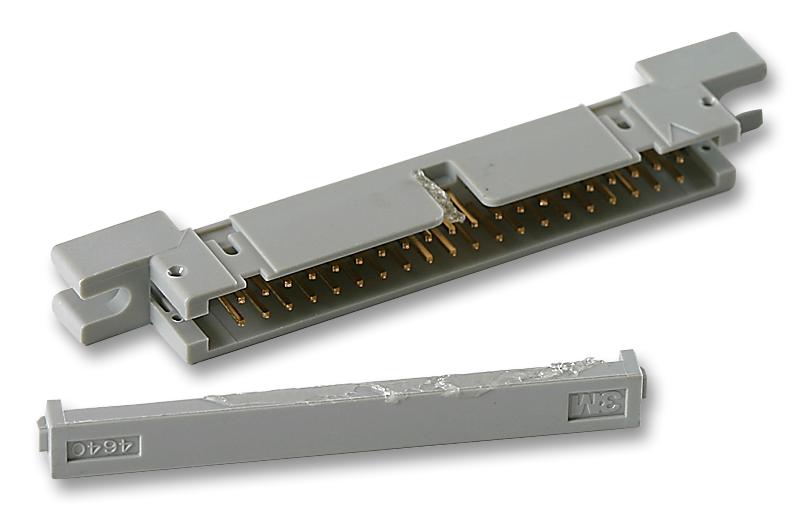

3M - 4640-6000 - IDC Connector, Lugged, IDC Plug, Male, 2.54 mm, 2 Row, 40 Contacts, Cable Mount
- Pitch Spacing: 2.54mm
- No. of Contacts: 40Contacts
- Gender: Plug
- Product Range: 4600 Series
- Contact Termination Type: IDC / IDT
- No. of Rows: 2Rows
- Contact Plating: Gold Plated Contacts
- Contact Material: Copper Alloy
- SVHC: No SVHC (15-Jan-2018)
- Colour: Grey
- Connector Mounting Orientation: Cable
- Connector Type: -
- Contact Resistance: 20mohm
- Current Rating: 1A
- Current Temperature: 70°C
- Flammability Rating: UL94V-0
- Insulation Resistance: 1000Mohm
- Material: Glass Filled Polyester (PBT)
- No. of Mating Cycles: 200
- Operating Temperature Max: 105°C
- Operating Temperature Min: -55°C
- Working Voltage: 350V
