Omschrijving

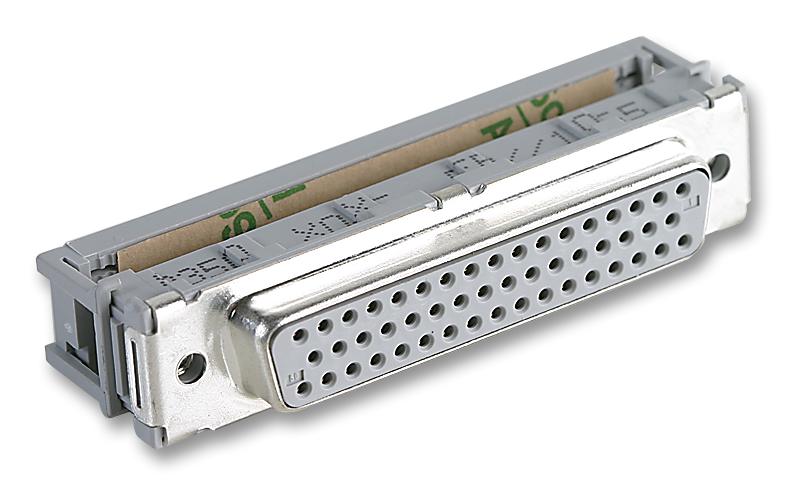

3M - 8350-6005 - D Sub Connector, DB50, Standard, Receptacle, 8300, 50 Contacts, DD, IDC / IDT
- No. of Contacts: 50Contacts
- Gender: Receptacle
- Contact Termination Type: IDC / IDT
- D Sub Shell Size: DD
- Product Range: 8300 Series
- Connector Body Material: Steel Body
- Contact Material: Copper Alloy
- Contact Plating: Gold Plated Contacts
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: CSA, UL
- Colour: Grey
- Connector Mounting: Cable Mount
- Contact Current Rating: 1A
- Contact Resistance: 20mohm
- Contact Termination: IDC / IDT
- D Sub Connector Type: Standard
- Flammability Rating: UL94V-0
- Material: Steel
- No. of Mating Cycles: 200
- Operating Temperature Max: 105°C
- Operating Temperature Min: -55°C
- Termination Method: IDC
- Voltage Rating VAC: 350V
