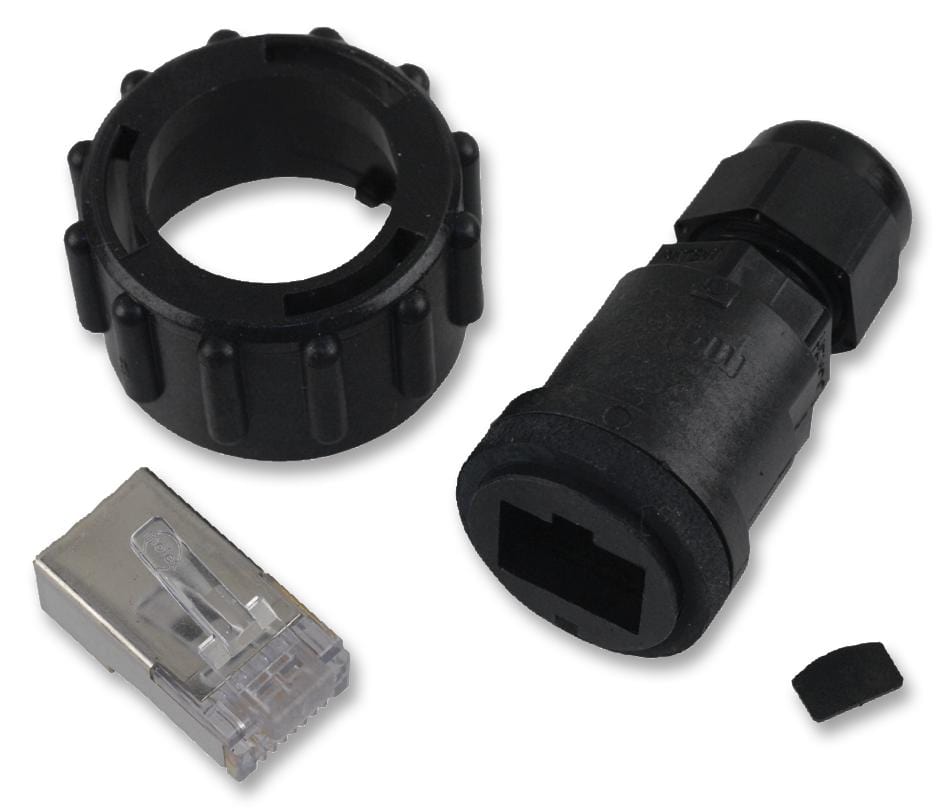

MOLEX - 84700-0002 - Modular Connector, BRAD, RJ45 Plug, 1 x 1 (Port), 8P8C, Cat5e, IP67, Cable Mount
- Modular Connector Type: RJ45 Plug
- Port Configuration: 1 x 1 Port
- No. of Positions / Loaded Contacts (per Port): 8P8C
- LAN Category: Cat5e
- IP Rating: IP67
- Connector Mounting: Cable Mount
- Connector Orientation: Vertical
- Shielding: Shielded
- Magnetics: Without Magnetics
- LEDs: Without LED
- Light Pipes: Without Light Pipe
- Product Range: 84700 Series
- SVHC: No SVHC (15-Jan-2019)
- Colour: Black
- Connector Type: RJ45
- Contact Material: Phosphor Bronze
- Contact Plating: Gold Plated Contacts
- Contact Resistance: 20mohm
- Contact Termination: IDC / IDT
- Contact Termination Type: IDC / IDT
- Flammability Rating: UL94V-0
- Gender: Plug
- IP / NEMA Rating: IP67
- Insulation Resistance: 500Mohm
- No. of Contacts: 8Contacts
- No. of Contacts: 8 Contact
- No. of Mating Cycles: 500
- Operating Temperature Max: 60°C
- Operating Temperature Min: -40°C
- Voltage Rating VAC: 125V
- Withstand Voltage: 1000V
