9272 Cable, 9272, Twinax, Per M Belden

BELDENSKU:9272 Bestelcode:1218659

Prijs:
Actie prijs€13,67

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (49 units)

Documenten en downloads

Omschrijving

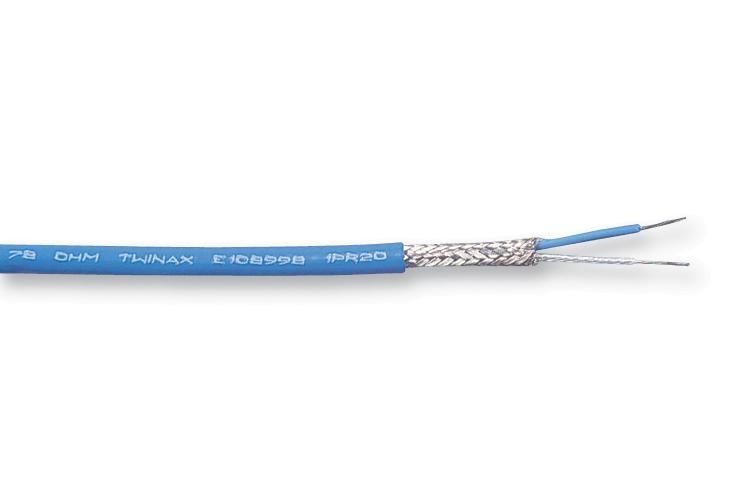

BELDEN - 9272 - Twinaxial Cable, Per M, 20 AWG, 0.51 mm², 78 ohm, Blue

  • Wire Gauge: 20AWG
  • Conductor Area CSA: 0.51mm²
  • Impedance: 78ohm
  • Jacket Colour: Blue
  • Reel Length (Imperial): -
  • Reel Length (Metric): -
  • No. of Max Strands x Strand Size: 7 x 0.32mm
  • Conductor Material: Tinned Copper
  • Jacket Material: PVC
  • External Diameter: 6.2mm
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • Alpha Type Number: 9815C EQUIVALENT
  • Approval Bodies: UL
  • Belden Type Number: 9272
  • Cable Type: Braided Shield
  • Cable UL Style Number: UL2092
  • Capacitance: 64.6pF/m
  • Complex Cable Make-Up: 2 x 7/28
  • Conductor Make-up: 7 / 28AWG
  • No. of Cores: 2Core
  • Operating Temperature Max: 60°C
  • Operating Temperature Min: -20°C
  • Outer Diameter: 6.2mm
  • Screen Type Primary: Tinned Copper Braid
  • Secondary Insulation Colour: Blue
  • Secondary Insulation Material: PVC
  • Velocity of Propagation (%): 66%
  • Voltage Rating: 300V
  • Voltage Rating VAC: 300V
  • Wire Size: 20AWG
