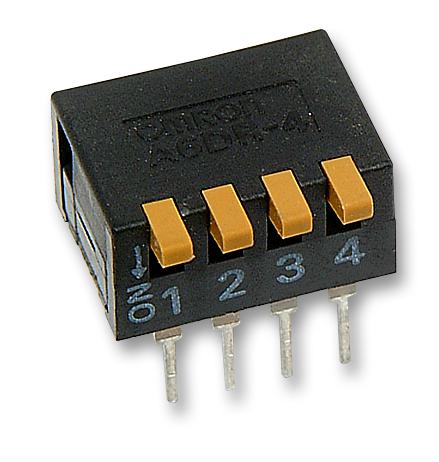

OMRON - A6DR-4100 - DIP / SIP Switch, 4 Circuits, Piano Key, Through Hole, SPST, 24 VDC, 25 mA
- No. of Circuits: 4Circuits
- Switch Actuator Style: Piano Key
- Switch Mounting: Through Hole
- Contact Configuration: SPST
- Contact Voltage DC Max: 24VDC
- Contact Current DC Max: 25mA
- Product Range: A6D Series
- Switch Type: DIP Sealed
- Actuation Type: Piano Key
- Actuator Type: Piano Key
- Approval Bodies: BT
- Contact Current @ Contact Voltage DC Max: 100mA
- Contact Current Rating: 100mA
- Contact Resistance: 100mohm
- Dielectric Strength VDC: 500V
- External Depth: 8.9mm
- External Length / Height: 6.4mm
- Insulation Resistance: 100Mohm
- Lead Spacing: 2.54mm
- Length: 12.2mm
- No. of Mechanical Operations: 5000
- No. of Positions: 4Ways
- Operating Temperature Max: 70°C
- Operating Temperature Min: -20°C
- Pin Configuration: DIL
- Pitch Spacing: 2.54mm
- Row Pitch: 7.62mm
