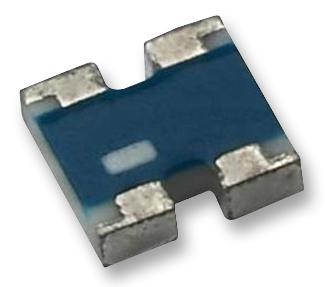

ACAS06061002E1002P1AT Resistor, Array, Precision, 10K/10K Vishay

VISHAYSKU:ACAS06061002E1002P1AT Bestelcode:1713557

Prijs:
Actie prijs€1,71

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1194 units)

Documenten en downloads

Omschrijving

VISHAY - ACAS06061002E1002P1AT - Fixed Network Resistor, 10 kohm, Isolated, 2 Resistors, 0606 [1616 Metric], Convex, ± 0.25%

  • Resistance: 10kohm
  • Product Range: ACAS Series
  • No. of Elements: 2Elements
  • Network Circuit Type: Isolated
  • Resistor Case Style: 0606 [1616 Metric]
  • No. of Pins: 4Pins
  • Voltage Rating: 75V
  • Power Rating per Element: 125mW
  • Resistance Tolerance: ± 0.25%
  • Temperature Coefficient: ± 25ppm/K
  • Automotive Qualification Standard: -
  • RoHS Phthalates Compliant: Yes
  • SVHC: No SVHC (15-Jun-2015)
  • External Depth: 1.6mm
  • External Length / Height: 0.45mm
  • External Width: 1.5mm
  • Operating Temperature Max: 155°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +155°C
  • Power Rating: 200mW
  • Resistance R1: 10kohm
  • Resistance R2: 10kohm
  • Resistances R1 / R2: 10K/10K
  • Resistor Element Material: Thin Film
  • Resistor Mounting: Surface Mount Device
