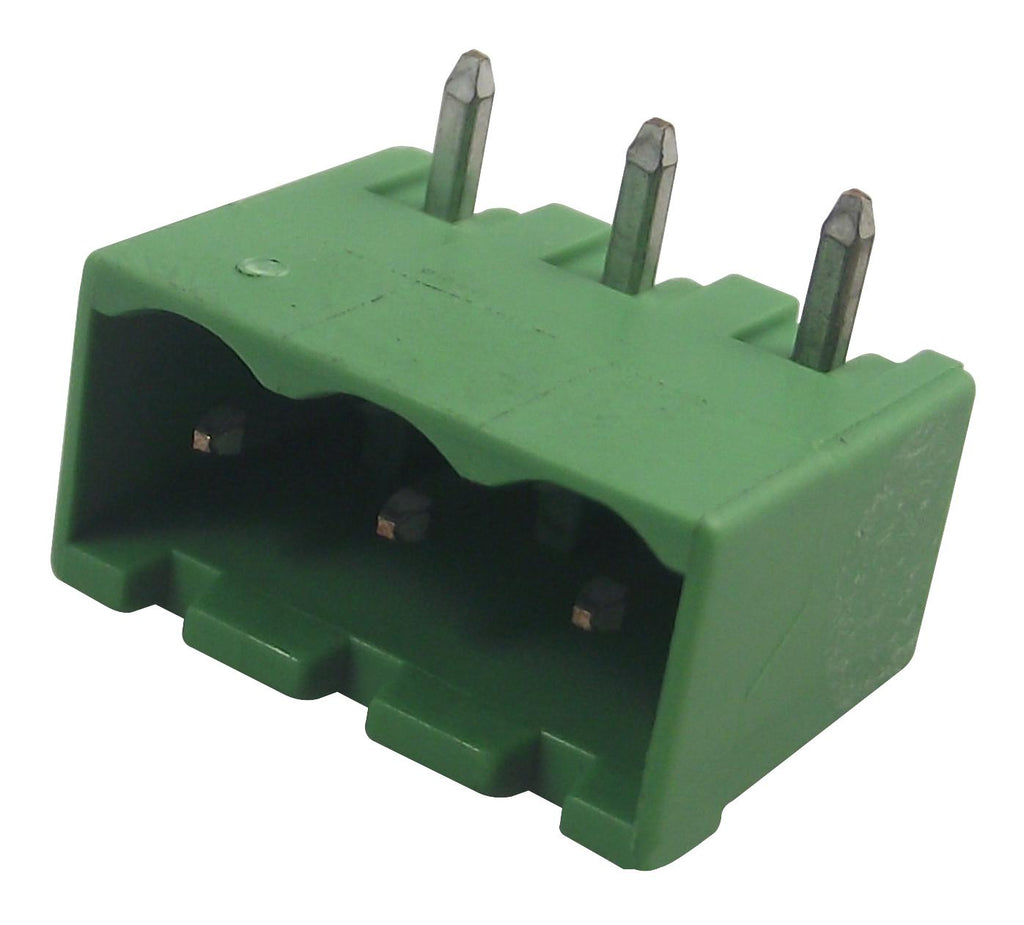

CTB9358/3 Header, Side-Entry, 3WAY, 5.08mm Camdenboss

CAMDENBOSSSKU:CTB9358/3 Bestelcode:1717036

Prijs:
Actie prijs€2,46

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (108 units)

Documenten en downloads

Omschrijving

CAMDENBOSS - CTB9358/3 - Terminal Block, Header, Header, 5.08 mm, 3 Ways, 12 A, 320 V

  • Pitch Spacing: 5.08mm
  • No. of Positions: 3Ways
  • Wire Size (AWG): -
  • Conductor Area CSA: -
  • Wire Connection Method: -
  • Rated Current: 12A
  • Rated Voltage: 320V
  • Product Range: CTB9358/A Series
  • SVHC: No SVHC (15-Jan-2019)
  • Cable Diameter Max: 2.5mm
  • Connector Mounting Orientation: PC Board
  • Contact Material: Brass
  • Contact Plating: Tin Plated Contacts
  • Contact Termination: Through Hole Right Angle
  • Contact Termination Type: Through Hole
  • Current Rating: 12A
  • Gender: Header
  • Insulation Resistance: 5Mohm
  • No. of Contacts: 3Contacts
  • No. of Rows: 1Rows
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -20°C
  • Working Voltage: 380V
