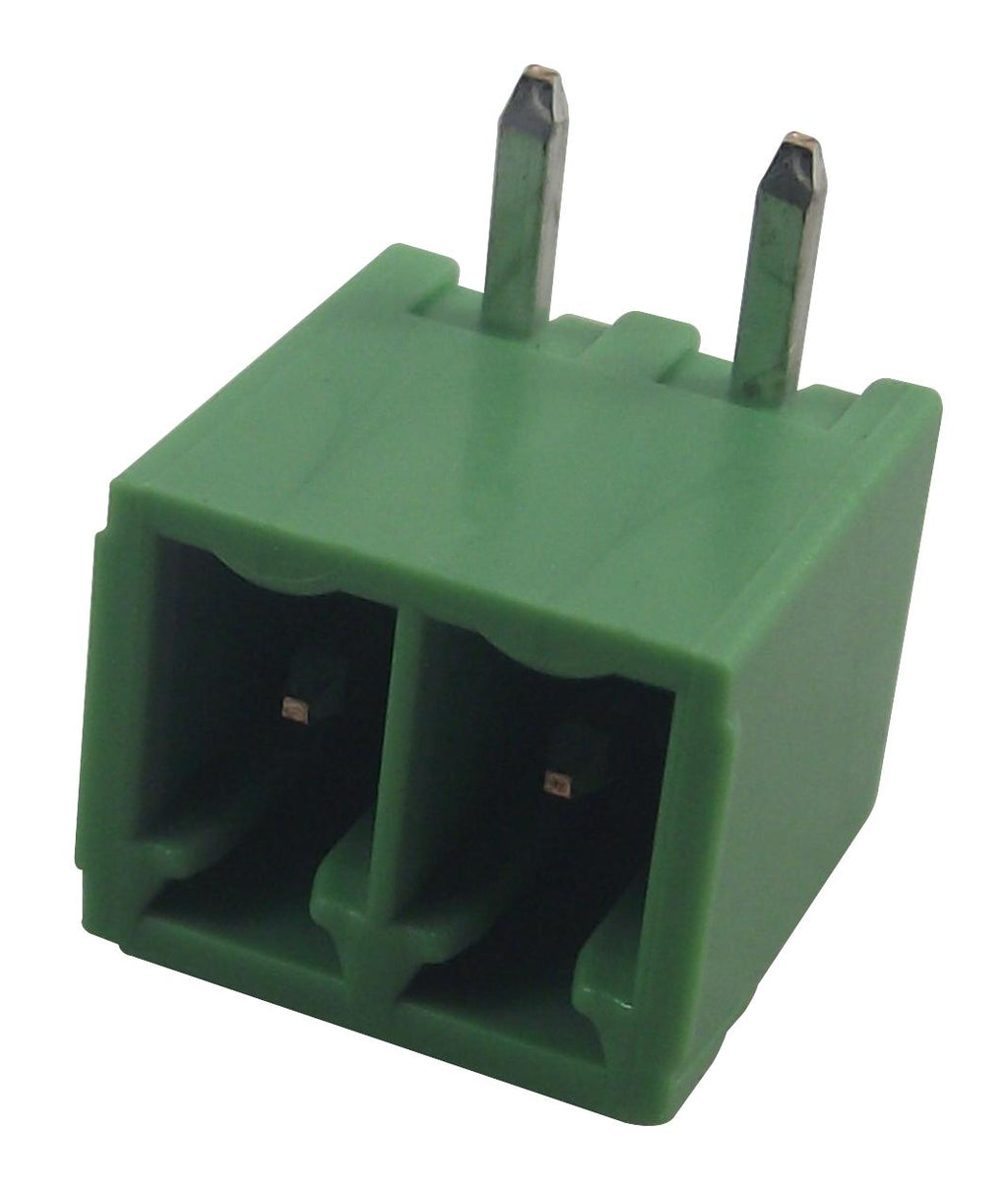

CTB93HE/2 Header, Side-Entry, 2WAY, 3.81mm Camdenboss

CAMDENBOSSSKU:CTB93HE/2 Bestelcode:1717071

Prijs:
Actie prijs€2,37

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (27 units)

Documenten en downloads

Omschrijving

CAMDENBOSS - CTB93HE/2 - Terminal Block, Header, Header, 3.81 mm, 2 Ways, 10 A, 200 V

  • Pitch Spacing: 3.81mm
  • No. of Positions: 2Ways
  • Wire Size (AWG): -
  • Conductor Area CSA: -
  • Wire Connection Method: -
  • Rated Current: 10A
  • Rated Voltage: 200V
  • Product Range: CTB93HE Series
  • SVHC: No SVHC (15-Jan-2019)
  • Colour: Green
  • Connector Mounting Orientation: PC Board
  • Contact Material: Brass
  • Contact Plating: Tin Plated Contacts
  • Contact Termination: Through Hole Right Angle
  • Contact Termination Type: Through Hole
  • Current Rating: 9A
  • Gender: Header
  • Insulation Resistance: 5Mohm
  • Length: 8.4mm
  • Material: UL94-V0 Flame Retardant PA66
  • No. of Contacts: 2Contacts
  • No. of Rows: 1Rows
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -20°C
  • Polarisation Type: Horizontal
  • Withstand Voltage: 1.25kV
  • Working Voltage: 200V
