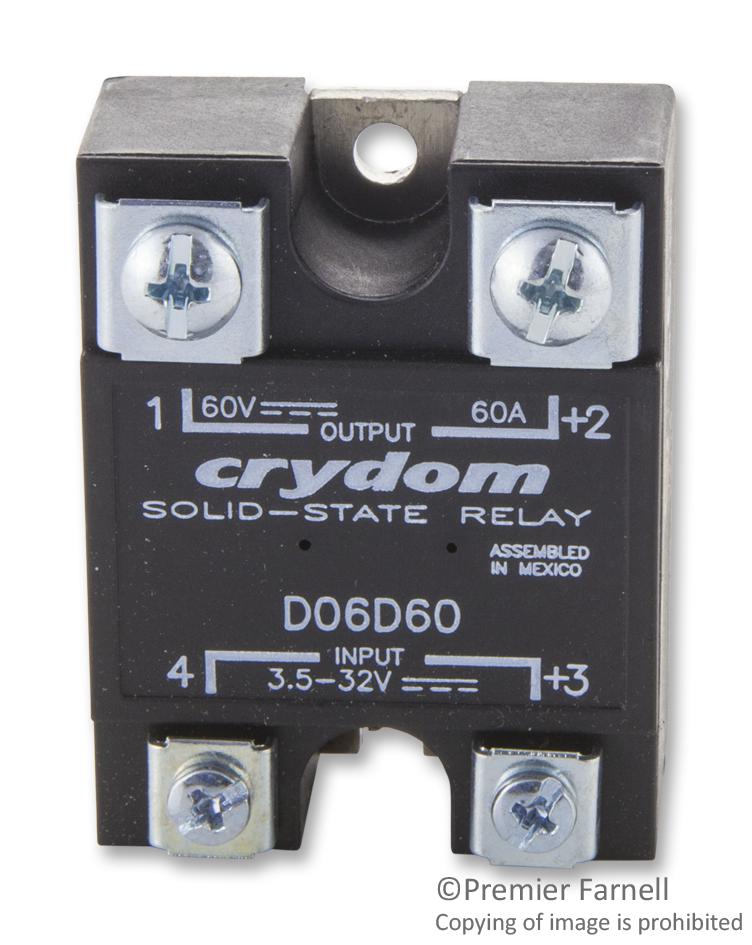

D06D60 SSR, 60A, 60VDC SENSATA/CRYDOM

SENSATA/CRYDOMSKU:D06D60 Bestelcode:1213168

Prijs:
Actie prijs€146,76

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (42 units)

Documenten en downloads

Omschrijving

SENSATA/CRYDOM - D06D60 - Solid State Relay, SPST-NO, 60 A, 60 VDC, Panel Mount, Screw, DC Switch

  • Contact Configuration: SPST-NO
  • Load Current: 60A
  • Operating Voltage Max: 60VDC
  • Relay Mounting: Panel
  • Relay Terminals: Screw
  • Switching Mode: DC Switch
  • Operating Voltage Min: 0VDC
  • Control Voltage Min: 3.5VDC
  • Control Voltage Max: 32VDC
  • Product Range: D06D Series
  • SVHC: No SVHC (12-Jan-2017)
  • Control Voltage DC Max: 32VDC
  • Control Voltage DC Min: 3.5VDC
  • Control Voltage Range: 3.5V DC to 32V DC
  • Control Voltage Type: DC
  • Current Rating: 60A
  • External Depth: 22.9mm
  • External Length / Height: 47.5mm
  • External Width: 45.7mm
  • Insulation Resistance: 1000Mohm
  • Isolation Voltage: 2.5kV
  • Leakage Current: 0.1mA
  • Load Current Min: 5mA
  • Load Current RMS Max: 60A
  • Load Voltage DC Max: 32VDC
  • Load Voltage DC Min: 3.5VDC
  • Operating Temperature Max: 80°C
  • Operating Temperature Min: -30°C
  • Operating Voltage Range: 0V DC to 60V DC
  • Output Type: MOSFET
  • RMS Load Current Min: 5mA
  • RMS Load Voltage Max: 60VDC
  • Single Cycle Surge Current: 180A
  • Surge Current: 180A
  • Turn Off Time: 1µs
  • Turn On Time: 300µs
