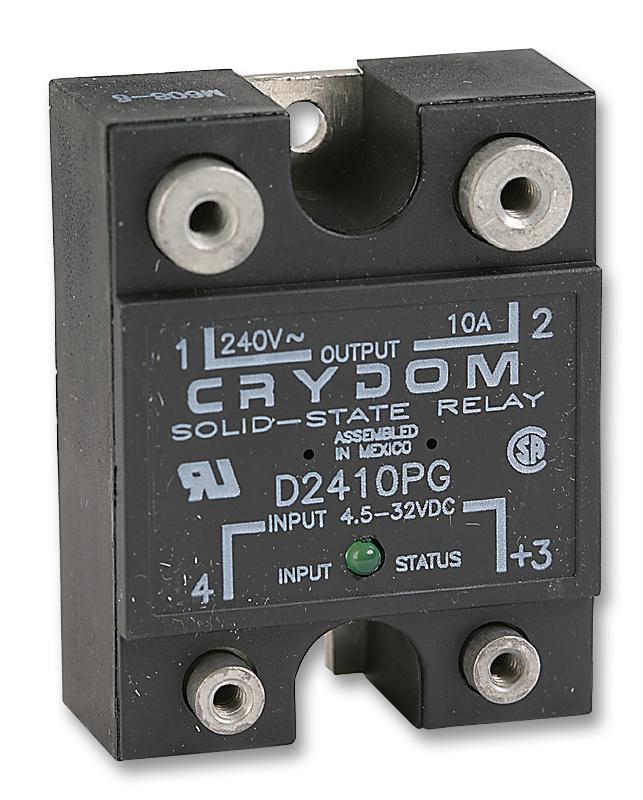

D2410PG SSR, 10A SENSATA/Crydom

SENSATA/CRYDOMSKU:D2410PG Bestelcode:1200238

Prijs:
Actie prijs€73,47

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (24 units)

Documenten en downloads

Omschrijving

SENSATA/CRYDOM - D2410PG - Solid State Relay, 10 A, 280 Vrms, Panel Mount, Screw

  • Contact Configuration: -
  • Load Current: 10A
  • Operating Voltage Max: 280Vrms
  • Relay Mounting: Panel
  • Relay Terminals: Screw
  • Switching Mode: -
  • Operating Voltage Min: 24Vrms
  • Control Voltage Min: 3VDC
  • Control Voltage Max: 32VDC
  • Product Range: 1 Series
  • SVHC: No SVHC (12-Jan-2017)
  • Blocking voltage: 600V
  • Control Voltage DC Max: 32VDC
  • Control Voltage DC Min: 3VDC
  • Control Voltage Range: 3V DC to 32V DC
  • Control Voltage Type: DC
  • External Depth: 22.2mm
  • External Diameter: 4.4mm
  • External Length / Height: 57.2mm
  • External Width: 44.4mm
  • Fixing Centres: 47.6mm
  • Input Voltage Max: 32VDC
  • Input Voltage Min: 4.5VDC
  • Isolation Voltage: 4kV
  • Load Current Min: 40mA
  • Load Current RMS Max: 10A
  • Must Release Voltage: 1V
  • Operating Voltage Range: 24Vrms to 280Vrms
  • Output Type: Thyristor
  • RMS Load Current Min: 40mA
  • RMS Load Voltage Max: 280V
  • RMS Load Voltage Min: 48V
  • Rate of Voltage Change dv / dt: 500V/µs
  • Resistance: 1500ohm
  • Single Cycle Surge Current: 120A
  • Surge Current: 120A
