Omschrijving

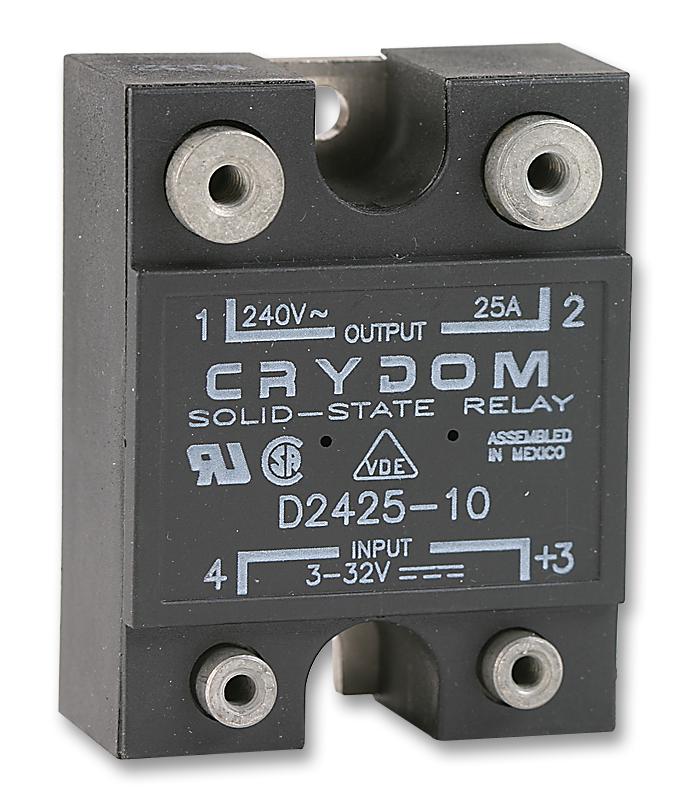

SENSATA/CRYDOM - D2425-10 - Solid State Relay, SPST-NO, 25 A, 280 VAC, Panel Mount, Screw, Random Turn On
- Contact Configuration: SPST-NO
- Load Current: 25A
- Operating Voltage Max: 280VAC
- Relay Mounting: Panel
- Relay Terminals: Screw
- Switching Mode: Random Turn On
- Operating Voltage Min: 24VAC
- Control Voltage Min: 3VDC
- Control Voltage Max: 32VDC
- Product Range: 1 Series
- SVHC: No SVHC (12-Jan-2017)
- Blocking voltage: 600V
- Control Current @ 5VDC: 5mA
- Control Voltage DC Max: 32VDC
- Control Voltage DC Min: 3VDC
- Control Voltage Range: 3V DC to 32V DC
- Control Voltage Type: DC
- Isolation Voltage: 4kV
- Load Current Min: 40mA
- Load Current RMS Max: 25A
- Operating Voltage Range: 24Vrms to 280Vrms
- Output Type: SCR
- Pulse Period Time: 0.1ms
- RMS Load Current Min: 40mA
- RMS Load Voltage Max: 280V
- RMS Load Voltage Min: 90V
- Surge Current: 250A
- Turn Off Time: 8.3ms
- Turn On Time: 0.02ms
