Omschrijving

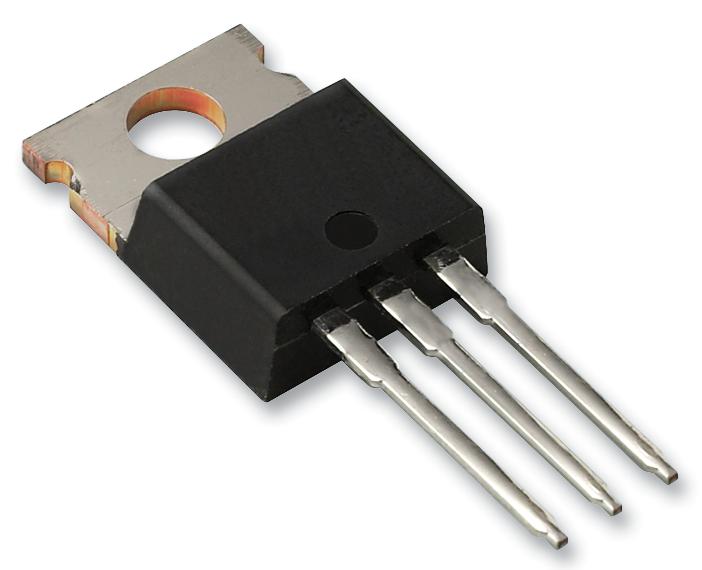

IXYS SEMICONDUCTOR - DSA80C100PB - Small Signal Schottky Diode, Dual Common Cathode, 100 V, 40 A, 730 mV, 400 A, 175 °C
- Diode Configuration: Dual Common Cathode
- Repetitive Reverse Voltage Vrrm Max: 100V
- Forward Current If(AV): 40A
- Forward Voltage VF Max: 730mV
- Forward Surge Current Ifsm Max: 400A
- Operating Temperature Max: 175°C
- Diode Case Style: TO-220AB
- No. of Pins: 3Pins
- Product Range: DSA80 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (12-Jan-2017)
- Current Ifsm: 400A
- Current Ir Max: 700µA
- Diode Type: Schottky
- Forward Voltage: 730mV
- Junction Temperature Tj Max: 175°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +175°C
- Power Dissipation Ptot Max: 250W
- Termination Type: Through Hole
