Omschrijving

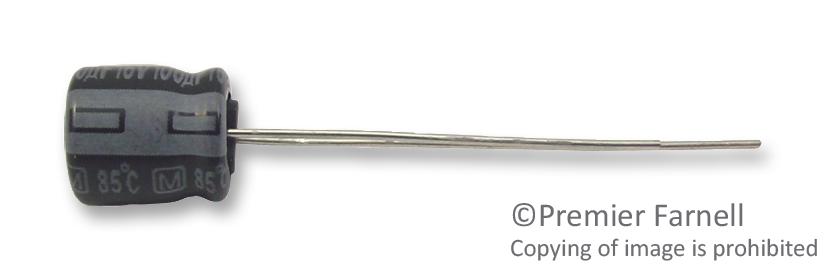

PANASONIC - ECA2CM010 - Electrolytic Capacitor, 1 µF, 160 V, ± 20%, Radial Leaded, 2000 hours @ 85°C, Polar
- Capacitance: 1µF
- Voltage Rating: 160V
- Product Range: -
- Capacitance Tolerance: ± 20%
- Capacitor Terminals: Radial Leaded
- Diameter: 6.3mm
- Lead Spacing: 2.5mm
- Height: 11.2mm
- Operating Temperature Min: -25°C
- Operating Temperature Max: 85°C
- Lifetime @ Temperature: 2000 hours @ 85°C
- ESR: -
- Automotive Qualification Standard: AEC-Q200
- SVHC: No SVHC (07-Jul-2017)
- Capacitance Tolerance ±: ± 20%
- External Length / Height: 11.2mm
- Lead Diameter: 0.5mm
- Operating Temperature Range: -25°C to +85°C
- Ripple Current AC: 36mA
