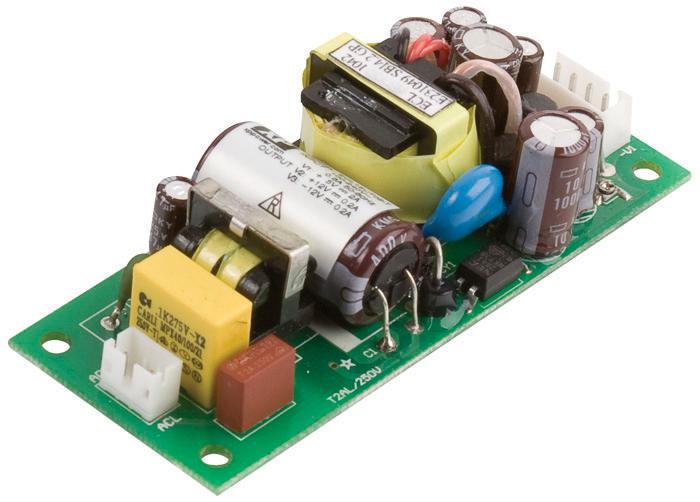

XP POWER - ECL25US09-T - AC/DC Open Frame Power Supply (PSU), ITE, 1 Output, 25 W, 85V AC to 264V AC, Adjustable, Fixed
- No. of Outputs: 1 Output
- Power Rating (Covection Cooling): 25W
- Power Rating (Forced Cooling): -
- Input Voltage VAC: 85V AC to 264V AC
- Power Supply Output Type: Adjustable, Fixed
- Output Voltage - Output 1: 9V
- Output Current - Output 1: 2.8A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Output Voltage - Output 4: -
- Current, Output 4: -
- Product Range: ECL Series
- SVHC: No SVHC (15-Jan-2018)
- Applications: General Purpose
- Approval Bodies: CSA, cUL, EN, UL
- Efficiency: 80%
- External Depth: 25.4mm
- External Length / Height: 88.9mm
- External Width: 35.6mm
- Height: 88.9mm
- Input Current: 0.4mA
- Input Frequency: 63Hz
- Input Voltage AC Max: 264V
- Input Voltage AC Min: 85V
- Inrush Current: 20A
- Isolation Voltage: 3000V
- Length: 25.4mm
- No. of Outputs: 1Outputs
- Operating Temperature Max: 70°C
- Operating Temperature Min: -20°C
- Output Current Max: 2.8A
- Output Power Max: 25W
- Peak Output Current: 3.64A
- Power Rating: 25W
