Ee-SG3 Opto Switch, Slotted Omron

OMRONSKU:EE-SG3 Bestelcode:1173624

Prijs:
Actie prijs€8,09

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (53 units)

Documenten en downloads

Omschrijving

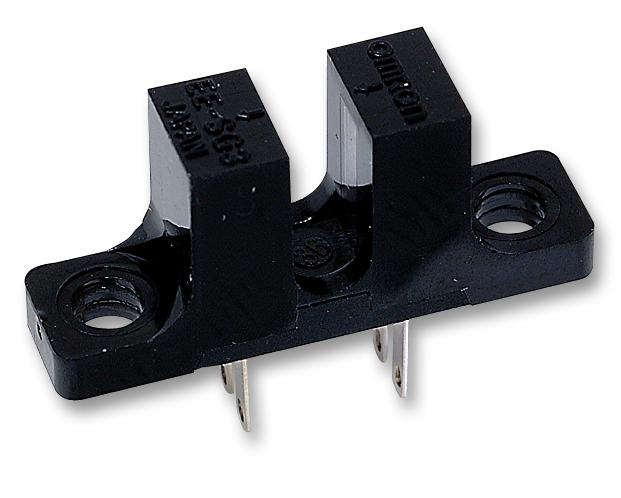

OMRON - EE-SG3 - Transmissive Photo Interrupter, Phototransistor, Through Hole, 3.6 mm, 50 mA, 4 V

  • Sensor Output: Phototransistor
  • Sensor Mounting: Through Hole
  • Gap Width: 3.6mm
  • Aperture Width: -
  • Forward Current If: 50mA
  • Reverse Voltage Vr: 4V
  • Forward Voltage: 1.2V
  • Product Range: EE-SG3 Series
  • Automotive Qualification Standard: -
  • Collector Emitter Saturation Voltage Vce(on): 0.4V
  • External Depth: 6.35mm
  • External Length / Height: 18mm
  • External Width: 25.4mm
  • Fall Time tf: 4s
  • Fixing Centres: 19mm
  • Forward Current If(AV): 50mA
  • Gap Width: 3.6mm
  • Height: 18mm
  • Input Current: 30mA
  • No. of Channels: 1Channels
  • No. of Pins: 4Pins
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -25°C
  • Operating Temperature Range: -25°C to +85°C
  • Optocoupler Output Type: Phototransistor
  • Output Voltage: 30V
  • Rise Time: 4s
  • Row Pitch: 7.6mm
