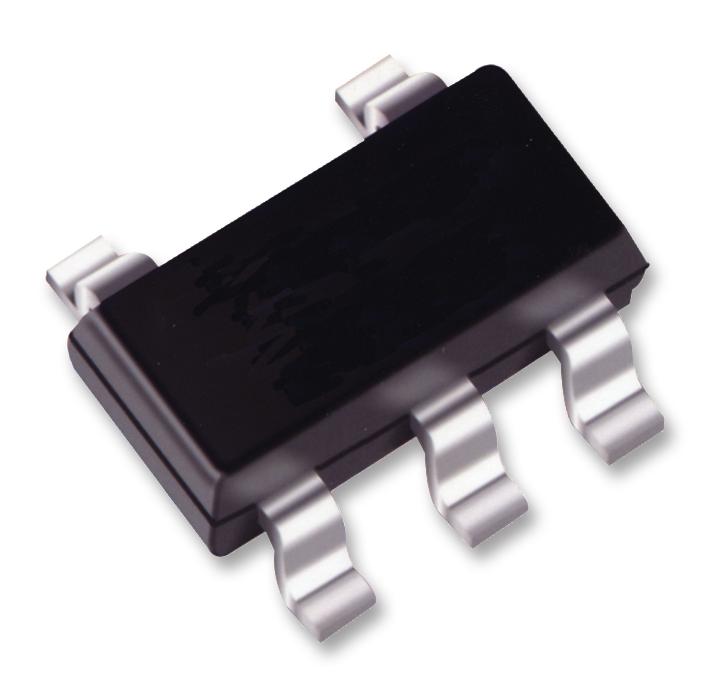

STMICROELECTRONICS - ESDA6V1SC5 - ESD Protection Device, TVS, SOT-23, 5 Pins, 5.3 V, ESDA6
- Clamping Voltage Vc Max: -
- Diode Case Style: SOT-23
- No. of Pins: 5Pins
- Operating Voltage: 5.3V
- Power Dissipation Pd: -
- Product Range: ESDA6 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (17-Dec-2015)
- Breakdown Voltage: 7.2V
- Breakdown Voltage Max: 7.2V
- Breakdown Voltage Min: 6.1V
- Breakdown Voltage Range: 6.1V to 7.2V
- Breakover Voltage Min: 6.1V
- Capacitance Cd @ Vr Typ: 190pF
- Current Ir Max: 1mA
- Diode Type: Unidirectional TVS
- Peak Pulse Current Ippm: 15A
- Peak Pulse Power Dissipation: 500W
- Peak Pulse Voltage: 25kV
- Reel Quantity: 3000
- Reverse Leakage Current Max: 20µA
- Reverse Stand-Off Voltage Vrwm: 5.25V
- SMD Marking: EC61
- Stand-off Voltage: 5.25V
- TVS Polarity: Unidirectional
- Tape Width: 8mm
- Termination Type: Surface Mount Device
