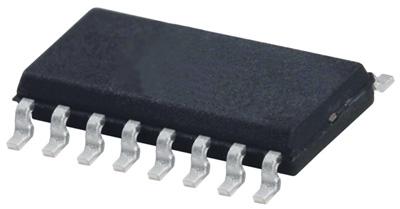

RENESAS - HA9P5320-5Z - Sample and Hold Amplifier, 1 Amplifier, 2 MHz, 1 µs, 500 µV, SOIC, 16 Pins
- No. of Amplifiers: 1 Amplifier
- Bandwidth: 2MHz
- Acquisition Time: 1µs
- Input Offset Voltage: 500µV
- Amplifier Case Style: SOIC
- No. of Pins: 16Pins
- Supply Voltage Range: ± 13.5V to ± 20V
- Settling Time: 165ns
- Operating Temperature Min: 0°C
- Operating Temperature Max: 75°C
- Product Range: -
- RoHS Phthalates Compliant: To Be Advised
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (07-Jul-2017)
- Amplifer Supply Voltage: ± 13.5V to ± 20V
- Amplifier Type: Sample and Hold
- Base Number: 9
- Gain Bandwidth: 2MHz
- Input Offset Voltage Max: 0.5mV
- No. of Amplifiers: 1Amplifiers
- Operating Temperature Range: 0°C to +75°C
- Output Current + Max: 10mA
- Output Current - Max: -10mA
- Slew Rate: 45V/µs
- Supply Voltage + Nom: 40V
- Supply Voltage Max: 20V
- Supply Voltage Min: 13.5V
- Termination Type: Surface Mount Device
