HCPL-3180-000E Optocoupler, IGBT Gate Drive O/P BROADCOM

BROADCOMSKU:HCPL-3180-000E Bestelcode:9130179

Prijs:
Actie prijs€7,81

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1860 units)

Documenten en downloads

Omschrijving

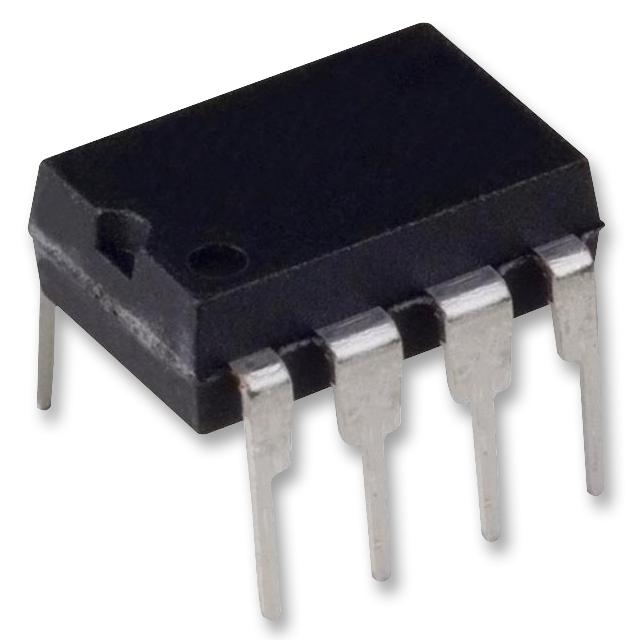

BROADCOM - HCPL-3180-000E - Optocoupler, Gate Drive Output, 1 Channel, DIP, 8 Pins, 3.75 kV

  • No. of Channels: 1 Channel
  • Optocoupler Case Style: DIP
  • No. of Pins: 8Pins
  • Isolation Voltage: 3.75kV
  • Product Range: -
  • SVHC: No SVHC (12-Jan-2017)
  • Approval Bodies: CSA
  • Approval Category: IEC/EN/DIN EN 60747-5-2
  • CMR: 10kV/µs
  • External Depth: 7.62mm
  • External Length / Height: 3.56mm
  • External Width: 9.65mm
  • Fall Time tf: 25ns
  • Frequency Max: 250Hz
  • Input Current: 16mA
  • Lead Spacing: 2.54mm
  • No. of Channels: 1Channels
  • Operating Temperature Max: 100°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +100°C
  • Optocoupler Output Type: Gate Drive
  • Optocoupler Type: Gate Drive Output
  • Output Current: 2A
  • Output Voltage: 20V
  • Peak Output Current: 2.5A
  • Propagation Time H-L: 0.2µs
  • Propagation Time L-H: 0.2µs
  • Rise Time: 25ns
  • Row Pitch: 7.62mm
  • Supply Voltage Max: 20V
  • Supply Voltage Min: 10V
  • Voltage Vcc Max: 30V
  • Voltage Vcc Min: 10V
  • Voltage Vcm: 1500V
