IA1209S Converter, DC/DC, 1W, +/-9V XP Power

XP POWERSKU:IA1209S Bestelcode:8727554

Prijs:
Actie prijs€10,15

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (25 units)

Documenten en downloads

Omschrijving

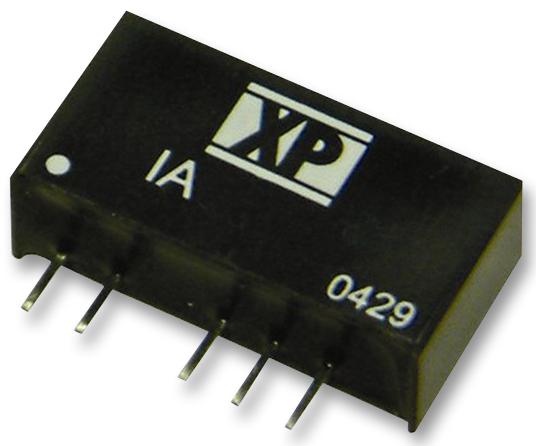

XP POWER - IA1209S - Isolated Through Hole DC/DC Converter, ITE, 1:1, 1 W, 2 Output, 9 V, 55 mA

  • No. of Outputs: 2 Output
  • Output Power Max: 1W
  • Output Voltage - Output 1: 9V
  • Output Current - Output 1: 55mA
  • Output Voltage - Output 2: -9V
  • Output Current - Output 2: 55mA
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Product Range: XP IA Series
  • Input Voltage DC Min: 10.8V
  • Input Voltage DC Max: 13.2V
  • DC / DC Converter Output Type: Fixed
  • DC / DC Converter Type: SIP
  • DC / DC Converter Mounting: Through Hole
  • Width: 6.09mm
  • Height: 10.16mm
  • Depth: 19.3mm
  • SVHC: No SVHC (15-Jan-2018)
  • Efficiency Max: 80%
  • Input Voltage: 12VDC
  • Isolation Voltage: 1kV
  • Line Regulation: 1.2%
  • Load Regulation: 8%
  • No. of Outputs: 2Outputs
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Output Voltage +: 9VDC
  • Output Voltage -: -9V
  • Power Rating: 1W
  • Supply Voltage: 12V
