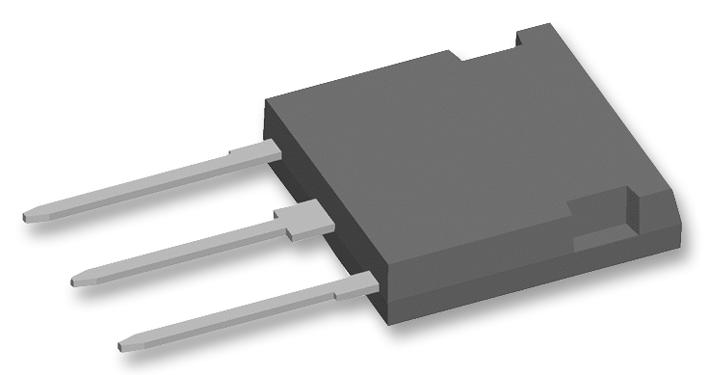

IXYS SEMICONDUCTOR - IXGF32N170 - IGBT, 44 A, 3.5 V, 200 W, 1.7 kV, ISOPLUS i4-PAC, 3 Pins
- DC Collector Current: 44A
- Collector Emitter Saturation Voltage Vce(on): 3.5V
- Power Dissipation Pd: 200W
- Collector Emitter Voltage V(br)ceo: 1.7kV
- Transistor Case Style: ISOPLUS i4-PAC
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (12-Jan-2017)
- Current Ic Continuous a Max: 26A
- Junction to Case Thermal Resistance A: 0.65°C/W
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Pin Configuration: Single
- Power Dissipation Max: 200W
- Termination Type: Through Hole
- Transistor Polarity: N Channel
- Transistor Type: IGBT
- Voltage Vces: 1700V
