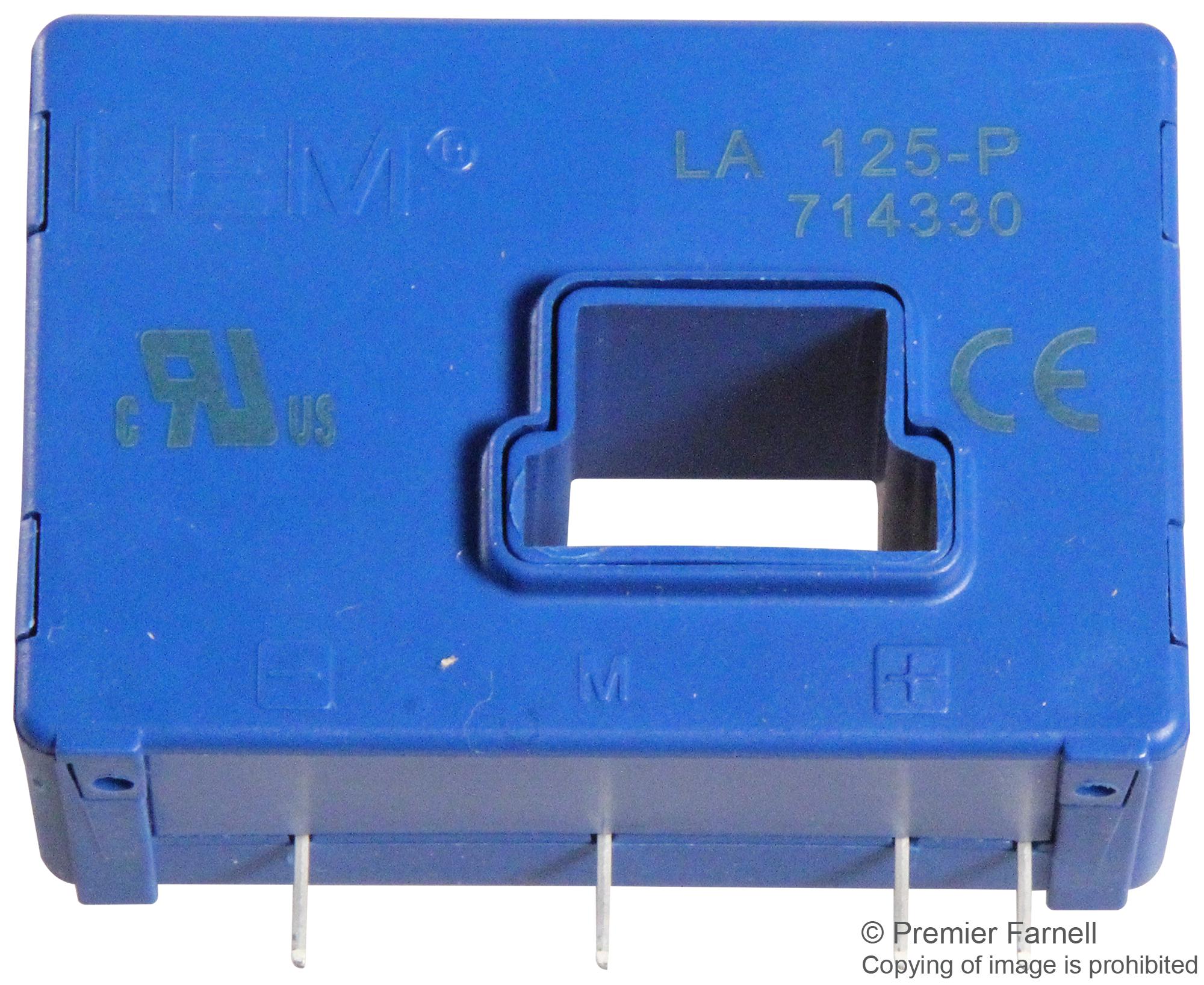

La 125-P Current Transducer, 125A Lem

LEMSKU:LA 125-P Bestelcode:1617406

Prijs:
Actie prijs€66,62

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (181 units)

Documenten en downloads

Omschrijving

LEM - LA 125-P - Current Transducer, LA Series, 125A, -200A to 200A, 0.6 %, Closed Loop Output, 12 Vdc to 15 Vdc

  • Sensor Output: Closed Loop
  • Supply Voltage DC Min: 12V
  • Supply Voltage DC Max: 15V
  • Current Measuring Range DC: -200A to 200A
  • Current Measuring Range AC: -200A to 200A
  • Response Time: 1µs
  • Accuracy %: 0.6%
  • Product Range: LA 125-P
  • SVHC: No SVHC (15-Jan-2018)
  • Accuracy: 0.8%
  • Current Consumption: 141mA
  • Current Range AC: ± 200
  • Current Range DC: ± 200
  • Current Rating: 125A
  • External Depth: 21.4mm
  • External Length / Height: 33.6mm
  • External Width: 48.4mm
  • Flammability Rating: UL 94-V0
  • Frequency Max: 100kHz
  • Frequency Min: 0Hz
  • Hole Diameter: 7mm
  • Operating Frequency Range: 0Hz to 100kHz
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Output Current: 125mA
  • Supply Current: 125A
  • Supply Voltage: 15V
  • Transducer Function: Current
