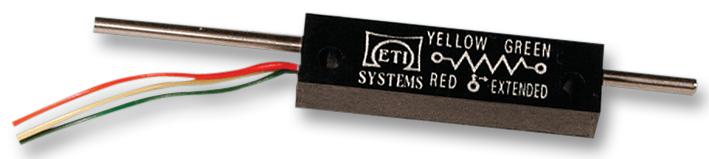

LCP8S-10-5K Potentiometer, Linear, 5K OHM ETI Systems

ETI SYSTEMSSKU:LCP8S-10-5K Bestelcode:1307093

Prijs:
Actie prijs€115,74

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Uitverkocht

Documenten en downloads

Omschrijving

ETI SYSTEMS - LCP8S-10-5K - Linear Motion Potentiometer, 5 kohm, ± 15%, 200 mW, LCP8, Wire Leaded

  • Track Resistance: 5kohm
  • Power Rating: 200mW
  • Resistance Tolerance: ± 15%
  • Product Range: LCP8 Series
  • Track Taper: Linear
  • Temperature Coefficient: ± 400ppm/°C
  • SVHC: No SVHC (07-Jul-2017)
  • Adjustment Type: Slide
  • External Depth: 8.18mm
  • External Length / Height: 31.99mm
  • External Width: 7.29mm
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -30°C
  • Operating Temperature Range: -30°C to +105°C
  • Resistor Element Material: Conductive Plastic
  • Temperature Coeff. +: 400ppm/°C
  • Temperature Coeff. -: 400ppm/°C
  • Termination Type: Wire Leaded
  • Tolerance +: 15%
  • Tolerance -: 15%
