Omschrijving

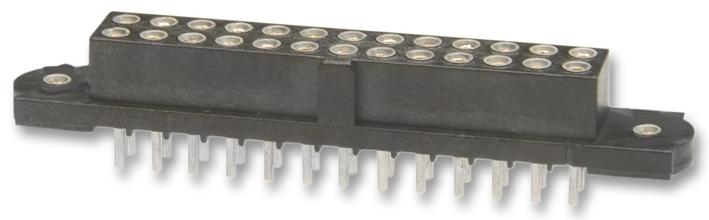

HARWIN - M80-4102642 - PCB Receptacle, Board-to-Board, Wire-to-Board, 2 mm, 2 Rows, 26 Contacts, Through Hole Mount
- Pitch Spacing: 2mm
- No. of Contacts: 26Contacts
- Gender: Receptacle
- Product Range: Datamate J-Tek M80-4 Series
- Contact Termination Type: Through Hole
- No. of Rows: 2Rows
- Contact Plating: Gold Plated Contacts
- Contact Material: Beryllium Copper
- SVHC: Lead (15-Jan-2019)
- Approval Category: BS 9525 F0033, CECC 75101-008, MIL C 55302
- Colour: Black
- Contact Resistance: 25mohm
- Current Rating: 3A
- De-mating Force: 0.2N
- Fixing Centres: 31mm
- Flammability Rating: UL94V-0
- Height: 5.2mm
- Insulation Resistance: 100Mohm
- Length: 36mm
- Material: Glass Filled PPS
- Mating Force: 2.8N
- No. of Mating Cycles: 500
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Proof Voltage: 360V
- Row Pitch: 2mm
- Working Voltage: 120V
