PE30L0FG472KAB Potentiometer, 4K7 Vishay

VISHAYSKU:PE30L0FG472KAB Bestelcode:1517290

Prijs:
Actie prijs€71,47

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Nog maar 2 producten leverbaar

Documenten en downloads

Omschrijving

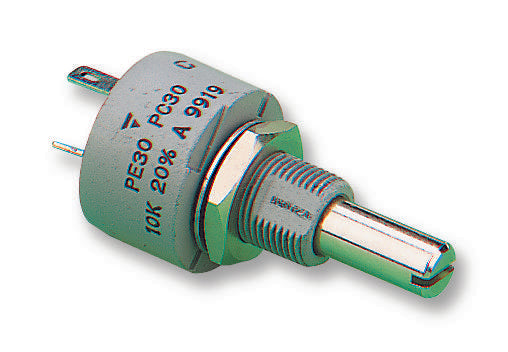

VISHAY - PE30L0FG472KAB - Rotary Potentiometer, Cermet, 4.7 kohm, 1 Turns, Linear, 3 W, ± 10%, PE30

  • Track Resistance: 4.7kohm
  • No. of Turns: 1Turns
  • Track Taper: Linear
  • Power Rating: 3W
  • Resistance Tolerance: ± 10%
  • Product Range: PE30 Series
  • Potentiometer Mounting: Bushing
  • Shaft Diameter: 6mm
  • No. of Gangs: 1
  • Adjustment Type: Screwdriver Slot
  • Shaft Length: 16mm
  • Body Diameter: 19.7mm
  • Contact Resistance Variation +: 3%
  • Contact Resistance Variation -: 3%
  • Electrical Angular Rotation Tolerance +: 10°
  • Electrical Angular Rotation Tolerance -: 10°
  • End Resistance: 1ohm
  • External Length / Height: 11.5mm
  • Insulation Resistance: 10000000Mohm
  • Mechanical Angular Rotation Tolerance +: 5°
  • Mechanical Angular Rotation Tolerance -: 5°
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +125°C
  • Proof Voltage: 2500V
  • Resistor Element Material: Cermet
  • Rotation Electrical Angle: 270°
  • Rotation Mechanical Angle: 300°
  • Temperature Coefficient: ± 100ppm/°C
  • Voltage Rating: 300V
