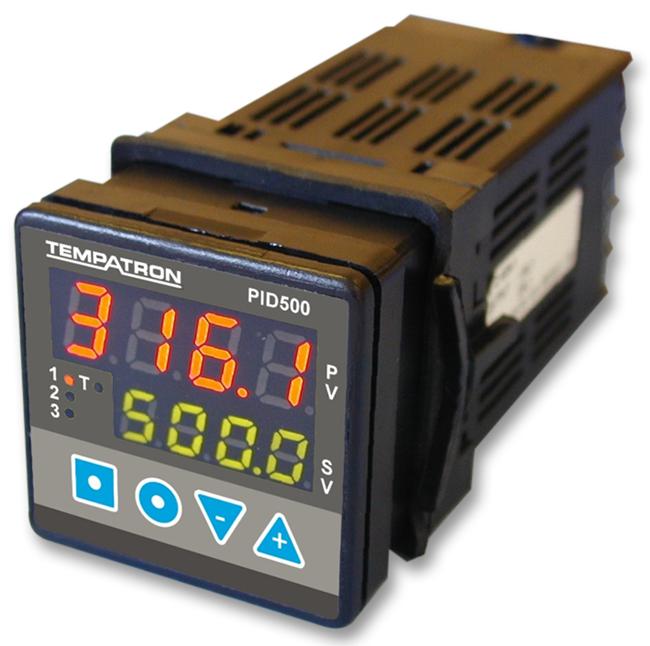

PID500MH-1000 PID Controller, 1/16DIN, HV SSR TEMPATRON

TEMPATRONSKU:PID500MH-1000 Bestelcode:1300202

Prijs:
Actie prijs€206,40

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (7 units)

Documenten en downloads

Omschrijving

TEMPATRON - PID500MH-1000 - PID Controller, PID500 Series, 48 x 48 mm, 85 to 270 Vac, Relay, SSR Outputs

  • Thermocouple Type: B, C, E, J, K, L, N, R, S, T, U, W, PLII
  • Operating Temperature Max: 50°C
  • Operating Temperature Min: 0°C
  • Temperature Accuracy ±: -
  • Output Voltage Max: 18VDC
  • Output Voltage Min: -
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Accuracy: ± 0.25%
  • Approval Bodies: CE, EN
  • Behind Panel Depth: 94mm
  • Colour: Black
  • External Depth: 107mm
  • External Length / Height: 48mm
  • External Width: 48mm
  • Input: J, K, T, R, S, C, E, B, N, U, W and Plantinel thermocouples, PT100 2/3 wire, -5 to 56mV, 0 to 10V, 0 to 20mA
  • No. of Inputs: 16
  • Output: SSR
  • Panel Cutout Size: 45 x 45 mm
  • Supply Voltage Max: 270VAC
  • Supply Voltage Min: 85VAC
  • Weight: 195g
