Omschrijving

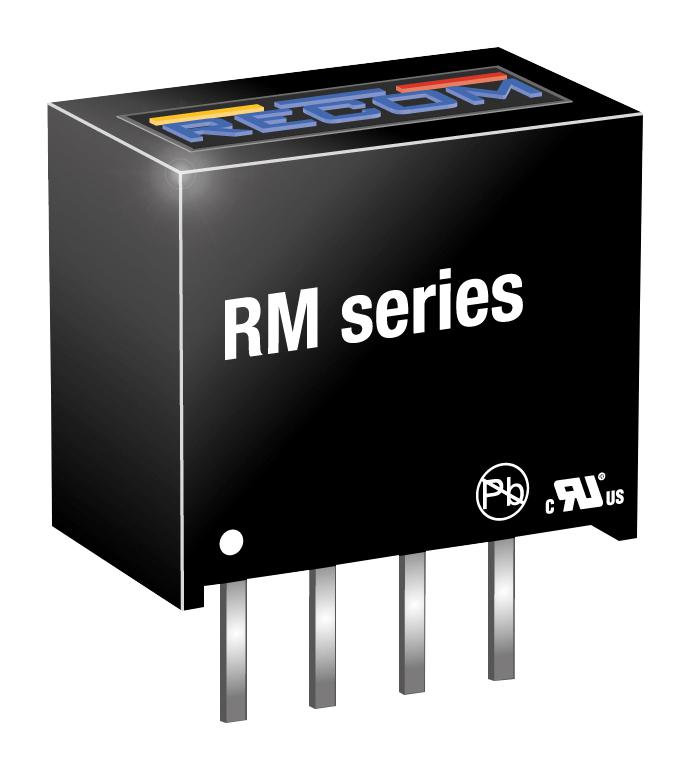

RECOM POWER - RM-1205S/H - Isolated Through Hole DC/DC Converter, Medical, 1:1, 250 mW, 1 Output, 5 V, 50 mA
- No. of Outputs: 1 Output
- Output Power Max: 250mW
- Output Voltage - Output 1: 5V
- Output Current - Output 1: 50mA
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: RM Series
- Input Voltage DC Min: 10.8V
- Input Voltage DC Max: 13.2V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: SIP
- DC / DC Converter Mounting: Through Hole
- Width: 6mm
- Height: 10mm
- Depth: 11.5mm
- SVHC: No SVHC (15-Jan-2019)
- Approvals & Standards: EN, IEC
