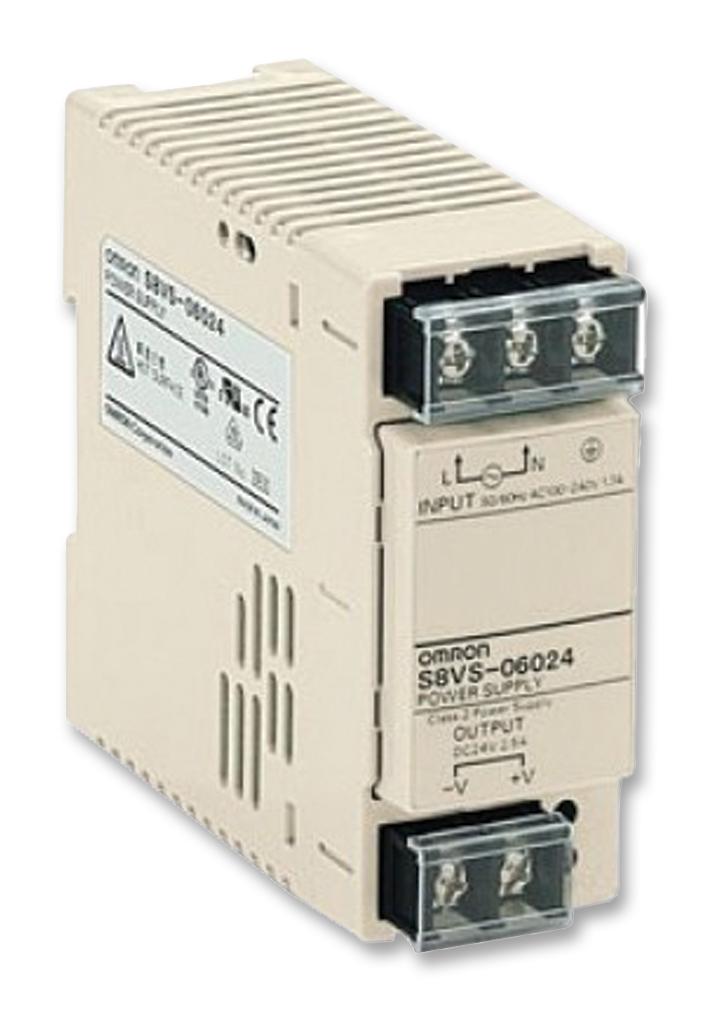

S8VS-06024 PSU, 60W, STD, 24V, 2.5A Omron

OMRONSKU:S8VS-06024 Bestelcode:1186529

Prijs:
Actie prijs€283,51

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (9 units)

Documenten en downloads

Omschrijving

OMRON - S8VS-06024 - AC/DC DIN Rail Power Supply (PSU), ITE, 1 Output, 60 W, 24 VDC, 2.5 A

  • No. of Outputs: 1 Output
  • Output Power Max: 60W
  • Output Voltage - Output 1: 24VDC
  • Output Current - Output 1: 2.5A
  • Output Voltage - Output 2: -
  • Output Current - Output 2: -
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Output Voltage - Output 4: -
  • Current, Output 4: -
  • Input Voltage VAC: 85V AC to 264V AC
  • Power Supply Output Type: Fixed
  • Product Range: -
  • Applications: Industrial
  • Approval Bodies: CSA, UL
  • External Depth: 108.3mm
  • External Length / Height: 99.5mm
  • External Width: 40mm
  • Frequency Max: 60Hz
  • Frequency Min: 50Hz
  • Height: 99.5mm
  • Hold Up Time: 20ms
  • Input Current: 1.7A
  • Input Frequency: 63Hz
  • Input Voltage: 85V AC to 264V AC
  • Input Voltage AC Max: 264VAC
  • Input Voltage AC Min: 85VAC
  • Input Voltage Max: 240VAC
  • Input Voltage Min: 100VAC
  • Inrush Current: 25A
  • Leakage Current: 0.5mA
  • Length: 108.3mm
  • No. of Outputs: 1Outputs
  • Operating Temperature Max: 60°C
  • Operating Temperature Min: -20°C
  • Output Current: 2.5A
  • Output Voltage: 24V
  • Power Rating: 60W
  • Supply Voltage: 264V
