Omschrijving

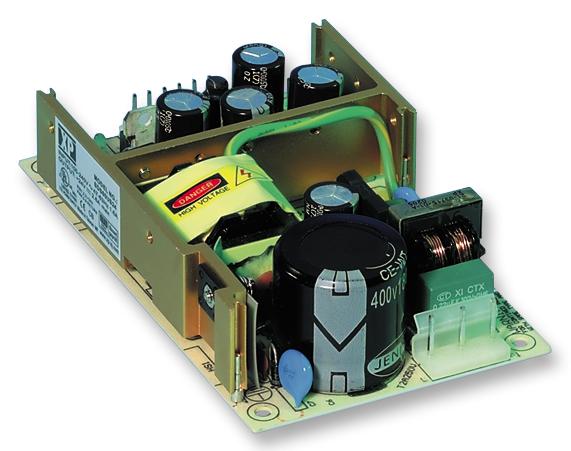

XP POWER - SDS60US36 - AC/DC Open Frame Power Supply (PSU), ITE, 1 Output, 63 W, 90V AC to 264V AC, Fixed
- No. of Outputs: 1 Output
- Power Rating (Covection Cooling): 63W
- Power Rating (Forced Cooling): -
- Input Voltage VAC: 90V AC to 264V AC
- Power Supply Output Type: Fixed
- Output Voltage - Output 1: 36V
- Output Current - Output 1: 1.7A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Output Voltage - Output 4: -
- Current, Output 4: -
- Product Range: SDS Series
- SVHC: No SVHC (15-Jan-2018)
- Applications: General Purpose
- Approval Bodies: CE, CSA, EN, UL
- External Depth: 127mm
- External Length / Height: 33.5mm
- External Width: 76.2mm
- Height: 30.5mm
- Input Frequency: 63Hz
- Input Voltage AC Max: 264V
- Input Voltage AC Min: 90V
- Length: 127mm
- No. of Outputs: 1Outputs
- Output Current Max: 1.7A
- Output Power: 63W
- Output Power Max: 63W
- Power Rating: 63W
- Power Supply Type: Switch Mode
- Supply Frequency Max: 63Hz
- Supply Frequency Min: 47Hz
- Supply Voltage: 264V
- Supply Voltage Max: 264V
- Supply Voltage Min: 90V
- Weight: 240g
- Width: 76.2mm
