SFH3710 Sensor, AMB. Light AMS OSRAM Group

AMS OSRAM GROUPSKU:SFH3710 Bestelcode:1573490

Prijs:
Actie prijs€1,42

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (11051 units)

Documenten en downloads

Omschrijving

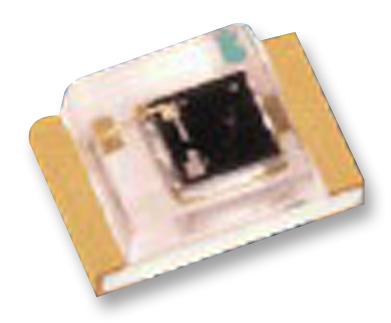

AMS OSRAM GROUP - SFH3710 - Phototransistor, 570 nm, 60 °, 2 Pins, SMD

  • Wavelength Typ: 570nm
  • Viewing Angle: 60°
  • Power Consumption: -
  • No. of Pins: 2Pins
  • Transistor Case Style: SMD
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 2 - 1 year
  • SVHC: No SVHC (17-Dec-2015)
  • Angle of Half Sensitivity ±: 60°
  • Collector Emitter Saturation Voltage Vce(on): 100mV
  • Continuous Collector Current Ic Max: 20mA
  • Current Ic Typ: 20mA
  • Dark Current: 3nA
  • External Depth: 0.95mm
  • External Length / Height: 2.1mm
  • External Width: 1.35mm
  • Nom Sensitivity @ mW/cm²: 8µA @ 0.1mW/cm²
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +85°C
  • Peak Spectral Response Wavelength: 570nm
  • Sensitivity: 350nm to 950nm
  • Transistor Polarity: NPN
  • Transistor Type: Photo
  • Voltage Vcc: 5V
