SO963460 SSR, 35A, 24-600VAC CELDUC

CELDUCSKU:SO963460 Bestelcode:1305662

Prijs:
Actie prijs€64,14

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (69 units)

Documenten en downloads

Omschrijving

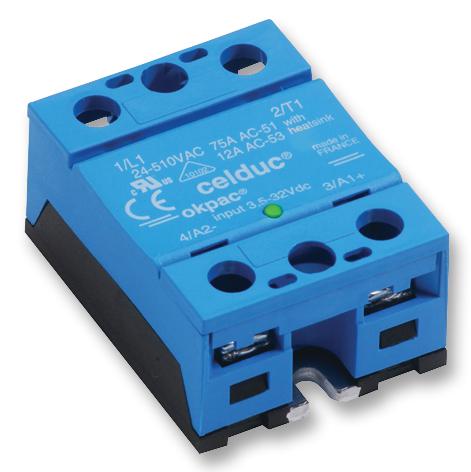

CELDUC - SO963460 - Solid State Relay, 35 A, 510 Vrms, Panel Mount, Screw, Zero Crossing

  • Contact Configuration: -
  • Load Current: 35A
  • Operating Voltage Max: 510Vrms
  • Relay Mounting: Panel
  • Relay Terminals: Screw
  • Switching Mode: Zero Crossing
  • Operating Voltage Min: 24Vrms
  • Control Voltage Min: 3.5VDC
  • Control Voltage Max: 32VDC
  • Product Range: -
  • SVHC: No SVHC (07-Jul-2017)
  • Control Voltage AC Max: 600VAC
  • Control Voltage AC Min: 24VAC
  • Control Voltage DC Max: 32VDC
  • Control Voltage DC Min: 3.5VDC
  • Control Voltage Range: 3.5V DC to 32V DC
  • Control Voltage Type: DC
  • Isolation Voltage: 4kV
  • Load Current Min: 5mA
  • Load Current RMS Max: 35A
  • Operating Voltage Range: 24Vrms to 510Vrms
  • Output Type: Thyristor
  • Output Voltage Max: 600V
  • Output Voltage Min: 24V
  • Peak Load Voltage +: 1200V
  • RMS Load Current Min: 5mA
  • Surge Current: 500A
